MAX11156ETC+T - Analog Devices

Description: 18-Bit, 500ksps, ±5V SAR ADC with Internal Reference in TDFN

Download MAX11156ETC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

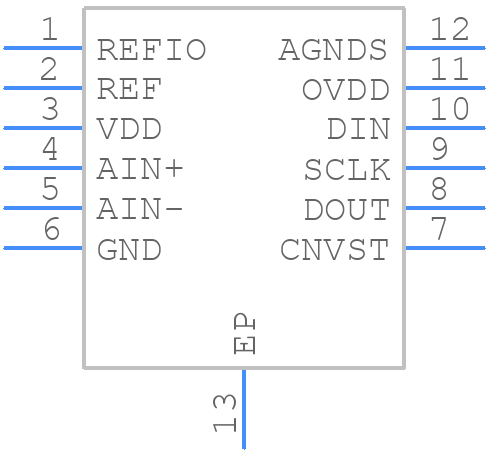

MAX11156ETC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11156ETC+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+1
click to zoom
3D Models
MAX11156ETC+T - Analog Devices - 3D model - Small Outline No-lead - TD1233+1
click to zoom

MAX11156ETC+T Details

  • Manufacturer Part Number:

    MAX11156ETC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2013-03-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.188 V

  • Analog Input Voltage-Min:

    -3.052 V

  • Conversion Time-Max:

    1.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX11156ETC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX11156ETC+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the analog signal sources.
  • To properly configure the MAX11156ETC+T, you'll need to consult the datasheet and application notes provided by Analog Devices Inc. You'll need to determine the correct gain setting, input range, and output format for your specific application. You may also need to adjust the device's internal clock frequency and/or use external clock sources. It's recommended to use the device's evaluation board and software development tools to simplify the configuration process.
  • When selecting external components for the MAX11156ETC+T, key considerations include the type and value of resistors, capacitors, and inductors used in the input and output stages. You'll need to ensure that the components are compatible with the device's operating frequency range and can handle the expected signal levels. Additionally, you should consider the component's tolerance, temperature coefficient, and parasitic effects on the overall system performance.
  • To troubleshoot common issues with the MAX11156ETC+T, start by consulting the datasheet and application notes for guidance on troubleshooting and debugging techniques. Check the device's power supply and input signal levels to ensure they are within the recommended operating range. Use oscilloscopes and spectrum analyzers to visualize the input and output signals and identify any anomalies. You may also need to use specialized tools, such as a logic analyzer, to debug digital communication issues.
  • The MAX11156ETC+T has a maximum operating temperature of 125°C. To ensure reliable operation in high-temperature environments, you'll need to implement effective thermal management techniques, such as using heat sinks, thermal interfaces, and airflow management. You should also consider the device's power dissipation and thermal resistance when designing your system. Consult the datasheet and application notes for guidance on thermal management and reliability.
