MAX11200EEE+ - Analog Devices

Description: ADC 24-Bit 1ch Low Power SPI GPIO QSOP16 Maxim MAX11200EEE+, 24 bit Serial ADC, Differential Input, 16-Pin QSOP

Download MAX11200EEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

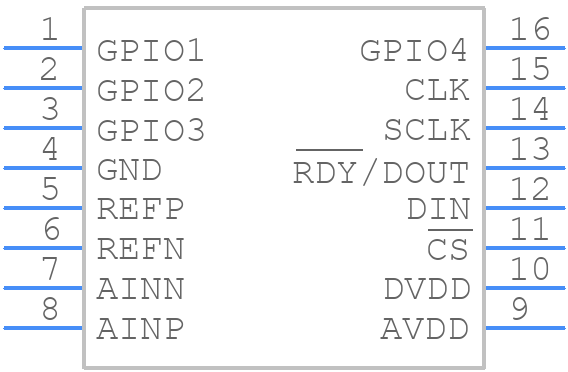

MAX11200EEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11200EEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 21-0055_O
click to zoom
3D Models
MAX11200EEE+ - Analog Devices - 3D model - Small Outline Packages - MAX 21-0055_O
click to zoom

MAX11200EEE+ Details

  • Manufacturer Part Number:

    MAX11200EEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    ROHS COMPLIANT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2010-07-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.5 V

  • Analog Input Voltage-Min:

    -0.1 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX11200EEE+ Frequently Asked Questions (FAQs)

  • The MAX11200EEE+ requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX11200EEE+ in noisy environments, it is recommended to use proper shielding, grounding, and filtering techniques. This includes using a shielded enclosure, connecting the device to a clean analog power supply, and using filters such as RC filters or ferrite beads to reduce noise. Additionally, it is recommended to use a differential input configuration to reduce common-mode noise.
  • The MAX11200EEE+ is specified to operate over a temperature range of -40°C to +125°C. However, it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • The MAX11200EEE+ can be programmed using the SPI interface. The device has a set of registers that can be accessed and modified using the SPI interface. The programming guide and register map are provided in the datasheet. Additionally, Analog Devices provides a software development kit (SDK) that includes example code and a GUI-based programming tool to simplify the programming process.
  • The typical power consumption of the MAX11200EEE+ depends on the operating mode and the clock frequency. In normal operating mode, the device consumes around 15mA of current from the analog power supply and 5mA of current from the digital power supply. In low-power mode, the device consumes around 5mA of current from the analog power supply and 1mA of current from the digital power supply.
