MAX11203EEE+T - Analog Devices

Description: 16-Bit, Single-Channel, Ultra-Low-Power, Delta- Sigma ADCs with Programmable Gain and GPIO

Download MAX11203EEE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

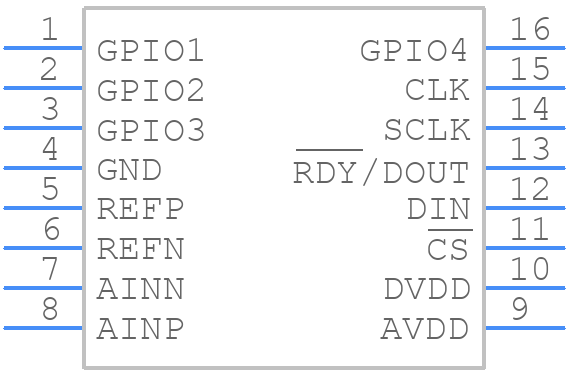

MAX11203EEE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11203EEE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+4
click to zoom
3D Models
MAX11203EEE+T - Analog Devices - 3D model - Small Outline Packages - E16+4
click to zoom

MAX11203EEE+T Details

  • Manufacturer Part Number:

    MAX11203EEE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    ROHS COMPLIANT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2010-07-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.002%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.246 MHz

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.235 mA

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX11203EEE+T Frequently Asked Questions (FAQs)

  • The MAX11203EEE+T requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • The MAX11203EEE+T has a POR and BOR feature that resets the device during power-up or brown-out conditions. To handle these features, ensure that the power supply is stable and within the recommended operating range. Also, consider adding external circuitry to debounce the reset signal and ensure a clean power-up sequence.
  • The MAX11203EEE+T can operate with a clock frequency up to 64 MHz. It is recommended to use a high-quality clock source, such as a crystal oscillator or a low-jitter clock generator, to ensure accurate conversions. The clock frequency should be chosen based on the specific application requirements and the desired conversion rate.
  • The MAX11203EEE+T has a programmable analog input range and gain settings. To optimize these settings, consider the specific requirements of your application, such as the input signal amplitude and frequency range. Use the device's datasheet and application notes to determine the optimal settings for your specific use case.
  • The MAX11203EEE+T has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, ensure that the device is operated within the recommended operating temperature range (-40°C to 125°C). Also, consider the thermal resistance of the package and the PCB, and ensure that the device is properly heatsinked if necessary.
