MAX1123EGK+D - Analog Devices

MAX1123EGK+D Details

• Manufacturer Part Number:

  MAX1123EGK+D

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

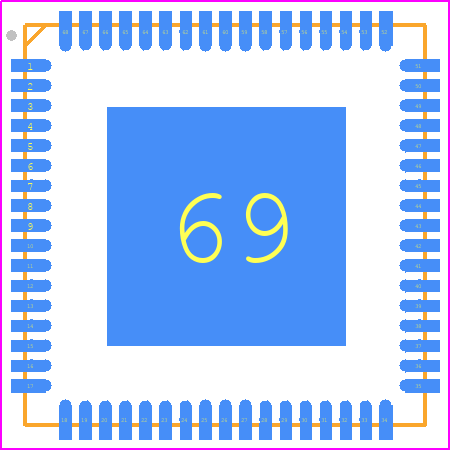

• Part Package Code:

  68-LFCSP-10X10X0.85

• Package Description:

  HVQCCN, LCC68,.4SQ,20

• Pin Count:

  68

• Manufacturer Package Code:

  68-LFCSP-10X10X0.85

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  3A991.c.1

• HTS Code:

  8542.39.00.30

• Date Of Intro:

  2003-11-10

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Input Voltage-Max:

  1.375 V

• Analog Input Voltage-Min:

  1.1 V

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  S-XQCC-N68

• JESD-609 Code:

  e3

• Length:

  10 mm

• Linearity Error-Max (EL):

  0.1953%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  1

• Number of Bits:

  10

• Number of Functions:

  1

• Number of Terminals:

  68

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY, OFFSET BINARY, 2S COMPLEMENT BINARY

• Output Format:

  PARALLEL, WORD

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC68,.4SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  210 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  0.9 mm

• Supply Current-Max:

  280 mA

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  10 mm
