MAX11261ENX+T - Analog Devices

Description: Analog to Digital Converters - ADC 24-Bit, 6-Channel, 64ksps, Delta-Sigma ADC with PAG and I2C and SPI Interface

Download MAX11261ENX+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

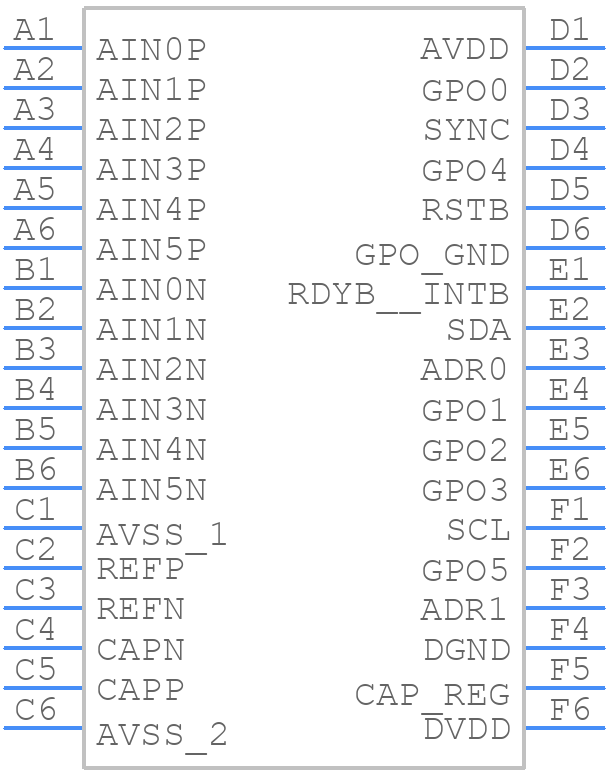

MAX11261ENX+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11261ENX+T - Analog Devices PCB footprint - BGA - BGA - N362B2+2-1
click to zoom
3D Models
MAX11261ENX+T - Analog Devices - 3D model - BGA - N362B2+2-1
click to zoom

MAX11261ENX+T Details

  • Manufacturer Part Number:

    MAX11261ENX+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-WLCSP-N/A

  • Package Description:

    WLP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-WLCSP-N/A

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2018-05-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -1.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XBGA-B36

  • Length:

    2.838 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    6

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA36,6X6,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.016 MHz

  • Seated Height-Max:

    0.5 mm

  • Supply Current-Max:

    5.65 mA

  • Supply Voltage-Nom:

    3.465 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.838 mm

MAX11261ENX+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX11261ENX+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to minimize the length of the analog signal traces.
  • To properly configure the MAX11261ENX+T, you need to consider factors such as the input signal range, sampling rate, and output data format. You can use the device's SPI interface to configure the device's registers and set the desired parameters. Refer to the device's datasheet and application notes for more information on configuration and programming.
  • The MAX11261ENX+T can handle input voltages up to ±5V, but it's recommended to keep the input voltage within the specified range of ±3.5V to ensure optimal performance and accuracy.
  • To ensure the accuracy and reliability of the MAX11261ENX+T's measurements, it's essential to follow proper calibration and testing procedures. This includes calibrating the device using a known reference signal, verifying the device's performance using a test signal, and implementing error detection and correction mechanisms in your application.
  • The MAX11261ENX+T is rated for operation up to 125°C, but its performance and accuracy may degrade at higher temperatures. It's recommended to consult the device's datasheet and application notes for more information on temperature-related specifications and limitations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX11261ENX+T Overview

Use the download button to access the MAX11261ENX+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX11, or try a keyword search, such as Analog to Digital Converters
