Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.30
Date Of Intro:
2004-11-12
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog Input Voltage-Max:
2.52 V
Conversion Time-Max:
8 µs
Converter Type:
ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
6.5 mm
Linearity Error-Max (EL):
0.0122%
Moisture Sensitivity Level:
1
Number of Analog In Channels:
2
Number of Bits:
14
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
70 °C
Output Bit Code:
BINARY, 2'S COMPLEMENT BINARY
Output Format:
SERIAL
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP20,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Sample Rate:
0.11666 MHz
Sample and Hold / Track and Hold:
TRACK
Seated Height-Max:
1.1 mm
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
MAX1147BCUP+ Frequently Asked Questions (FAQs)
A good layout and routing practice for the MAX1147BCUP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VCC pin.
The MAX1147BCUP+ has several configuration options, including gain settings, filter bandwidth, and output coding. To properly configure the device, engineers should consult the datasheet and application notes, and consider factors such as signal amplitude, frequency, and desired output format. Trade-offs between different configuration options may include noise performance, power consumption, and output resolution.
Potential sources of error and inaccuracy in the MAX1147BCUP+ include noise, offset voltage, gain error, and nonlinearity. These can be mitigated by using proper layout and routing, selecting the appropriate gain setting, and calibrating the device. Additionally, engineers can use techniques such as averaging and filtering to reduce the impact of noise and other errors.
The MAX1147BCUP+ has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) mechanisms. The OVP circuitry protects the device from input voltages exceeding 6V, while the UVLO circuitry prevents the device from operating when the supply voltage falls below 2.7V. Additionally, engineers can use external protection circuits, such as voltage regulators and TVS diodes, to further protect the device from voltage transients and surges.
The MAX1147BCUP+ has a maximum operating temperature range of -40°C to +125°C. To ensure reliable operation over temperature, engineers should consider factors such as power dissipation, thermal resistance, and package thermal design. This may involve using thermal vias, heat sinks, and thermal interface materials, as well as selecting a suitable PCB material and design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX1147BCUP+ Overview

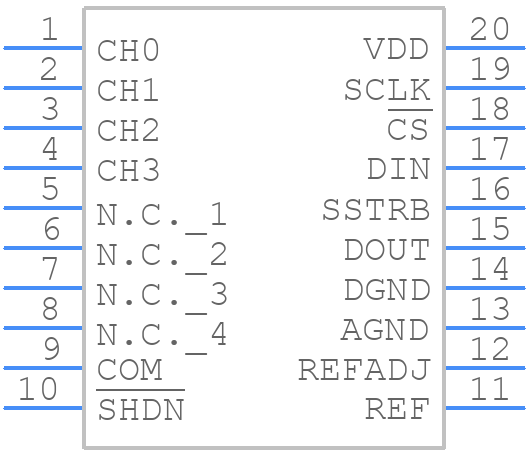

Use the download button to access the MAX1147BCUP+ schematic symbol, PCB footprint, and 3D model.
