MAX115CAX+ - Analog Devices

Description: 2x4-Channel, Simultaneous-Sampling 12-Bit ADCs

Download MAX115CAX+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

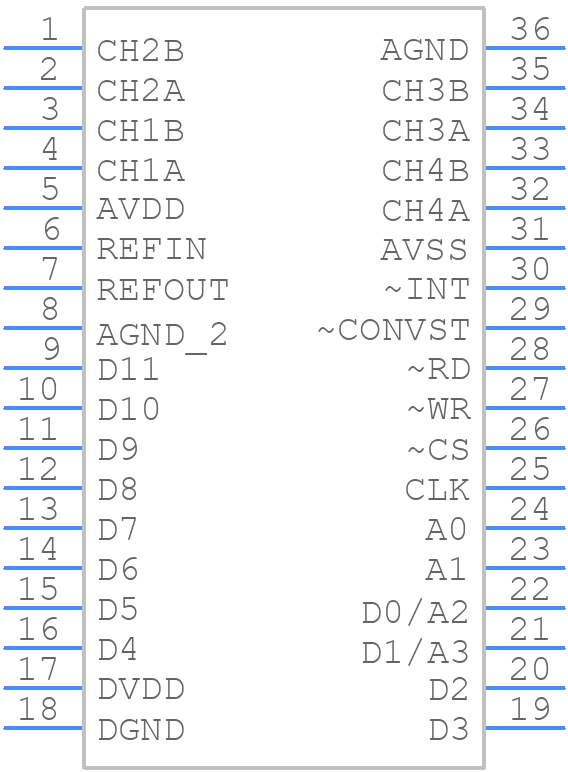

MAX115CAX+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

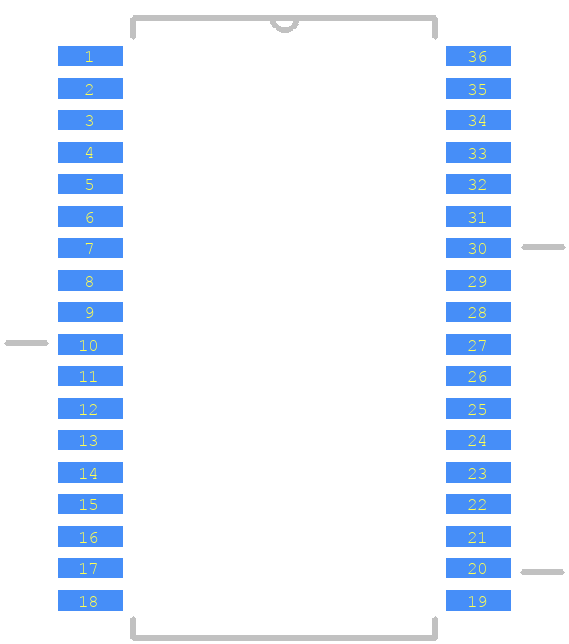

MAX115CAX+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 36ssop
click to zoom
3D Models
MAX115CAX+ - Analog Devices - 3D model - Small Outline Packages - 36ssop
click to zoom

MAX115CAX+ Details

  • Manufacturer Part Number:

    MAX115CAX+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-SSOP_W-7.62_MM

  • Package Description:

    0.300 INCH, 0.80 MM PITCH, ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-SSOP_W-7.62_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2001-02-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Conversion Time-Max:

    8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.415 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP36,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.116 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.495 mm

MAX115CAX+ Frequently Asked Questions (FAQs)

  • The MAX115CAX+ is a high-speed, high-precision analog-to-digital converter, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal source, use a solid ground plane, and keep the analog and digital signals separate. Additionally, it is recommended to use a low-ESR capacitor for the VDD pin and to decouple the VDD and VSS pins with a 0.1uF capacitor.
  • The MAX115CAX+ is a highly configurable device, and the configuration will depend on the specific application. It is recommended to consult the datasheet and the application notes provided by Analog Devices Inc to determine the optimal configuration for your specific application. Additionally, it is recommended to use the evaluation board and the software development kit provided by Analog Devices Inc to test and validate the configuration.
  • The maximum sampling rate of the MAX115CAX+ is 100kSPS, but this can be affected by the clock frequency, the conversion mode, and the output data format. It is recommended to consult the datasheet and the application notes provided by Analog Devices Inc to determine the maximum sampling rate for your specific application.
  • The MAX115CAX+ outputs digital data in a 16-bit or 12-bit format, depending on the configuration. It is recommended to use a microcontroller or a digital signal processor to handle the digital output data. The data can be processed and analyzed using software development kits and libraries provided by Analog Devices Inc or third-party vendors.
  • The power consumption of the MAX115CAX+ depends on the operating mode, the clock frequency, and the output data format. The typical power consumption is around 15mW, but it can be minimized by using the power-down mode, reducing the clock frequency, and optimizing the output data format. It is recommended to consult the datasheet and the application notes provided by Analog Devices Inc to determine the optimal power consumption for your specific application.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MAX115CAX+ Overview

Use the download button to access the MAX115CAX+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX11, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
