MAX11601EKA+T - Analog Devices

Description: 2.7V to 3.6V and 4.5V to 5.5V, Low-Power, 4-/8-/12-Channel 2-Wire Serial 8-Bit ADCs

Download MAX11601EKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

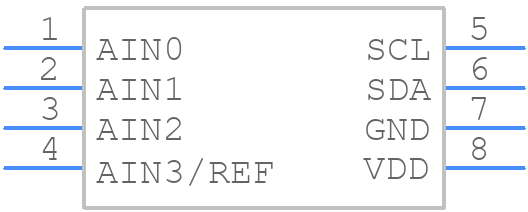

MAX11601EKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11601EKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - 8-Pin SOT23
click to zoom
3D Models
MAX11601EKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - 8-Pin SOT23
click to zoom

MAX11601EKA+T Details

  • Manufacturer Part Number:

    MAX11601EKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    ROHS COMPLIANT, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2009-05-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.8 V

  • Analog Input Voltage-Min:

    -1.8 V

  • Conversion Time-Max:

    6.1 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.188 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX11601EKA+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX11601EKA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB layout guidelines. The device has a thermal pad that can be connected to a heat sink or a thermal relief pattern on the PCB. Additionally, consider using thermal interface materials to improve heat transfer.
  • The recommended power-up sequence for the MAX11601EKA+T is to first apply the analog power supply (AVDD) followed by the digital power supply (DVDD). The power-up sequence should be controlled to ensure that the analog power supply is stable before the digital power supply is applied.
  • To troubleshoot issues with the MAX11601EKA+T, start by verifying the power supply voltages and ensuring that the device is properly configured. Check the device's output signals using an oscilloscope or logic analyzer, and verify that the microcontroller is properly communicating with the device. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
  • While the MAX11601EKA+T has a specified maximum sampling rate, it may be possible to use it in a design that requires a higher sampling rate. However, this would require careful evaluation of the device's performance and potential limitations, such as increased noise and distortion. Consult with Analog Devices' application engineers or technical support for guidance on using the device beyond its specified maximum sampling rate.
