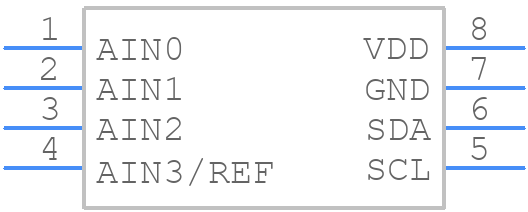

Symbol
MAX11613EUA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11613EUA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8CN+1
click to zoom
3D Models
MAX11613EUA+T - Analog Devices - 3D model - Small Outline Packages - U8CN+1
click to zoom

MAX11613EUA+T Details

  • Manufacturer Part Number:

    MAX11613EUA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2009-05-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.8 V

  • Conversion Time-Max:

    7.5 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.15 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX11613EUA+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX11613EUA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane to minimize noise and interference.
  • The MAX11613EUA+T has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. It's recommended to use a thermal interface material (TIM) between the thermal pad and the thermal plane to improve heat transfer. Additionally, ensuring good airflow around the device and using a heat sink if necessary can help to reduce the junction temperature.
  • The recommended power-up sequence for the MAX11613EUA+T involves powering up the analog supply (AVDD) before the digital supply (DVDD). The analog supply should be powered up first to ensure that the internal analog circuits are properly biased before the digital circuits are powered up.
  • To troubleshoot issues with the MAX11613EUA+T, start by verifying that the power supplies are correct and stable, and that the input signals are within the specified range. Check the clock frequency and ensure that it's within the recommended range. Use an oscilloscope to verify the output codes and check for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes for further guidance.
  • Yes, the MAX11613EUA+T can be used in a multi-channel application. To synchronize the conversions, use the SYNC pin to trigger the conversions simultaneously across multiple devices. Ensure that the clock signals are synchronized across all devices, and use a common reference voltage to ensure that the conversions are accurate and correlated.
