MAX11616EEE+T - Analog Devices

Description: High-Speed I2C-Compatible Serial Interface 400kHz Fast Mode 1.7MHz High-Speed Mode ♦ Single-Supply 2.7V to 3.6V (MAX11613/MAX11615/MAX11617) 4.5V to 5.5V (MAX11612/MAX11614/MAX11616) ♦ Ultra-Small Packages 8-Pin µMAX (MAX11612/MAX11613) 1.9mm x 2.2mm, 12-Bump WLP (MAX11613) 16-Pin QSOP (MAX11614–MAX11617) 2.14mm x 2.0mm, 16-Bump WLP (MAX11615/ MAX11617) ♦ Internal Reference 2.048V (MAX11613/MAX11615/MAX11617) 4.096V (MAX11612/MAX11614/MAX11616) ♦ External Reference: 1V to VDD ♦ Internal Cloc

Download MAX11616EEE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

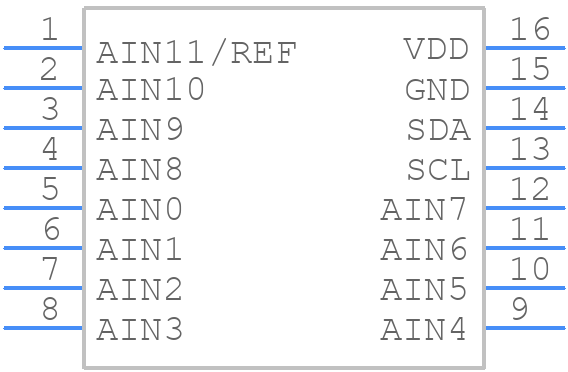

MAX11616EEE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11616EEE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+1
click to zoom
3D Models
MAX11616EEE+T - Analog Devices - 3D model - Small Outline Packages - E16+1
click to zoom

MAX11616EEE+T Details

  • Manufacturer Part Number:

    MAX11616EEE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    ROHS COMPLIANT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2009-05-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.75 V

  • Conversion Time-Max:

    7.5 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    12

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.15 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX11616EEE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX11616EEE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals under the device.
  • The MAX11616EEE+T has a thermal pad that must be connected to a solid ground plane to dissipate heat. It's recommended to use a thermal relief pattern on the PCB to improve heat dissipation. Additionally, the device should be placed in a well-ventilated area, and the ambient temperature should be kept below 85°C to ensure reliable operation.
  • The recommended input voltage range for the MAX11616EEE+T is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
  • The MAX11616EEE+T has a programmable gain amplifier that can be set to different gain settings using the GAIN pin. The gain setting can be selected by connecting the GAIN pin to VCC, GND, or a resistive divider network. The specific gain setting will depend on the application requirements and can be calculated using the formulas provided in the datasheet.
  • The maximum sampling rate of the MAX11616EEE+T is 100ksps. However, the actual sampling rate may be limited by the system clock frequency, the analog input bandwidth, and the digital output data rate.
