MAX11666AUB+T - Analog Devices

Description: Analog to Digital Converters - ADC 12-Bit 500ksps ADCs, Small, Low-Power, SPI, 1-/2-Channel

Download MAX11666AUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

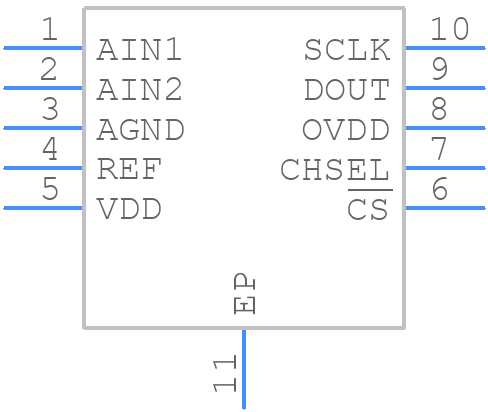

MAX11666AUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11666AUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX8517EUB+
click to zoom
3D Models
MAX11666AUB+T - Analog Devices - 3D model - Small Outline Packages - MAX8517EUB+
click to zoom

MAX11666AUB+T Details

  • Manufacturer Part Number:

    MAX11666AUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO_EP-N/A

  • Package Description:

    5 X 3 MM, ROHS COMPLIANT, UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO_EP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2010-11-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.65 V

  • Converter Type:

    A/D CONVERTER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.67 mA

  • Supply Voltage-Nom:

    1.76 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX11666AUB+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX11666AUB+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • The MAX11666AUB+T has a thermal pad that must be connected to a thermal relief pattern on the PCB to ensure proper heat dissipation. A thermal via array or a thermal relief pattern with a minimum of 10 vias is recommended. Additionally, the device should be placed in a way that allows for good airflow around it.
  • The recommended input impedance for the MAX11666AUB+T is 1kΩ to 10kΩ. This impedance range ensures that the device can accurately measure the input signal while minimizing the effects of input capacitance and noise.
  • The MAX11666AUB+T is designed to operate from a single 2.7V to 5.5V supply. While it's possible to use the device with a different voltage supply, it's essential to ensure that the supply voltage is within the recommended range and that the device's absolute maximum ratings are not exceeded.
  • The MAX11666AUB+T does not require calibration. The device is factory-calibrated, and its internal calibration data is stored in on-chip registers. However, it's essential to follow the recommended layout and placement guidelines and to ensure that the device is properly powered and grounded to ensure optimal performance.
