MAX11666AUB/V+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX11666AUB/V+ - ADC, 2-CH, SAR, 12BIT, 500KSPS, UMAX-10

Download MAX11666AUB/V+ Model

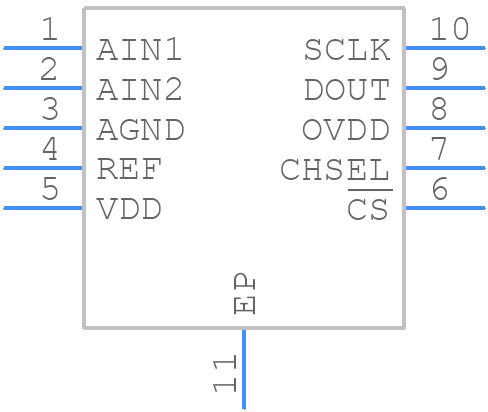

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX11666AUB/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Max 21-0109_G
click to zoom
3D Models
MAX11666AUB/V+ - Analog Devices  - 3D model - Small Outline Packages - Max 21-0109_G
click to zoom

MAX11666AUB/V+ Details

  • Manufacturer Part Number:

    MAX11666AUB/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO_EP-N/A

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO_EP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2010-11-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    3.65 V

  • Conversion Time-Max:

    2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.024%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.67 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX11666AUB/V+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX11666AUB/V+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX11666AUB/V+ in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency noise sources. Additionally, consider using a common-mode filter or a differential amplifier to reject common-mode noise.
  • The maximum clock frequency that can be used with the MAX11666AUB/V+ is 50MHz. However, the actual clock frequency used may be limited by the specific application and the noise environment.
  • The MAX11666AUB/V+ has built-in overvoltage protection up to ±25V. However, it's still recommended to use external overvoltage protection devices, such as TVS diodes or zener diodes, to protect the device from high-voltage transients.
  • The recommended power-up sequence for the MAX11666AUB/V+ is to power up the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other power-up issues.
