MAX1168BEEG+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1168BEEG+ - ADC, 8-CH, SAR, 16BIT, 200KSPS, QSOP-24

Download MAX1168BEEG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

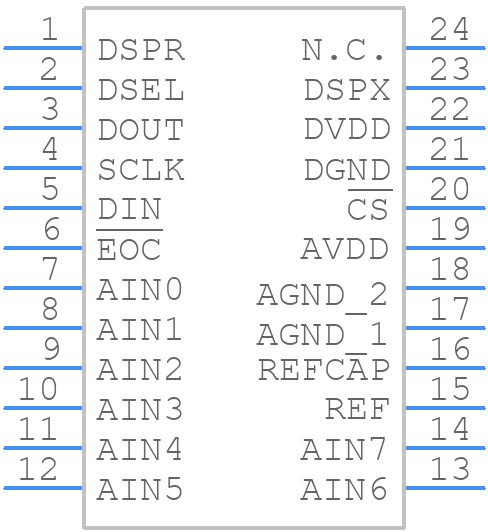

Symbol
MAX1168BEEG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1168BEEG+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX1168BEEG+
click to zoom
3D Models
MAX1168BEEG+ - Analog Devices - 3D model - Small Outline Packages - MAX1168BEEG+
click to zoom

MAX1168BEEG+ Details

  • Manufacturer Part Number:

    MAX1168BEEG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-QSOP-150_MIL

  • Package Description:

    QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2003-08-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    5.05 V

  • Conversion Time-Max:

    7.07 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX1168BEEG+ Frequently Asked Questions (FAQs)

  • The MAX1168BEEG+ is a high-speed ADC, and as such, it requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the ADC close to the analog signal source, use a solid ground plane, and keep the analog and digital signals separate. Additionally, it is recommended to use a low-ESR capacitor for the VREF pin and to decouple the power supplies with a 10uF capacitor.
  • To optimize the MAX1168BEEG+ for low-power operation, it is recommended to use the lowest possible clock frequency, reduce the input signal bandwidth, and use the power-down mode when not converting. Additionally, the VDD and VDDIO power supplies can be reduced to 1.8V, which can help reduce power consumption. It is also recommended to use a low-power mode for the reference voltage and to disable the internal clock when not in use.
  • The maximum sampling rate of the MAX1168BEEG+ is 100Msps, but this can be limited by the quality of the input signal, the clock frequency, and the system noise. In practice, a sampling rate of up to 80Msps can be achieved with a high-quality input signal and a well-designed system.
  • The MAX1168BEEG+ has an internal calibration circuit that can be used to calibrate the ADC. It is recommended to perform a calibration cycle after power-up and after any changes to the reference voltage or input signal. Additionally, it is recommended to use an external calibration signal to ensure accurate conversions.
  • The recommended input signal range for the MAX1168BEEG+ is 0 to VREF, where VREF is the reference voltage. The maximum input signal range is 2 x VREF, but this can be limited by the analog input range of the ADC. It is recommended to use an input signal range that is within 10% of the maximum range to ensure accurate conversions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1168BEEG+ Overview

Use the download button to access the MAX1168BEEG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX11, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
