MAX1230BEEG+ - Analog Devices

Description: Maxim MAX1230BEEG+, 12-bit Serial ADC 16-channel Differential, Single Ended Input, 24-Pin QSOP

Download MAX1230BEEG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

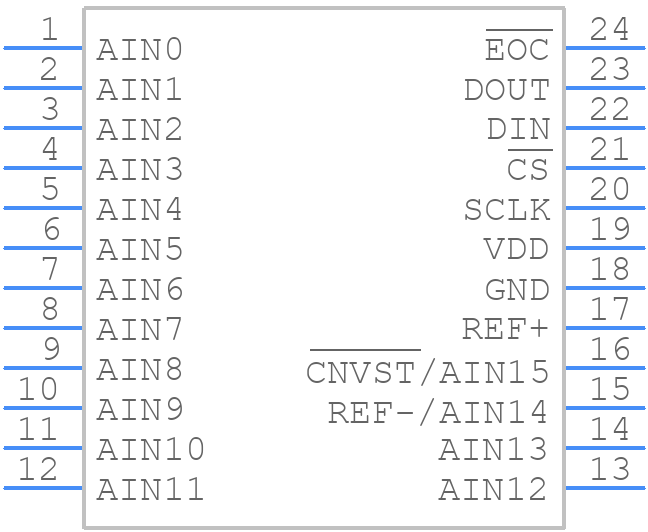

Symbol
MAX1230BEEG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1230BEEG+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP 24
click to zoom
3D Models
MAX1230BEEG+ - Analog Devices - 3D model - Small Outline Packages - QSOP 24
click to zoom

MAX1230BEEG+ Details

  • Manufacturer Part Number:

    MAX1230BEEG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-QSOP-150_MIL

  • Package Description:

    ROHS COMPLIANT, QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2003-06-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.048 V

  • Analog Input Voltage-Min:

    -2.048 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    16

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.3 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX1230BEEG+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX1230BEEG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to place the bypass capacitors as close as possible to the IC and to use a low-ESR capacitor for the VCC pin.
  • To ensure the accuracy and stability of the MAX1230BEEG+ output voltage, it's essential to use high-quality external components, such as low-tolerance resistors and capacitors, and to follow the recommended layout and routing guidelines. Additionally, the input voltage should be well-regulated and free of noise, and the output should be decoupled with a capacitor to filter out any noise or ripple.
  • The MAX1230BEEG+ can handle input voltages up to 6V, but it's recommended to limit the input voltage to 5.5V or less to ensure reliable operation and to prevent damage to the device. Exceeding the maximum input voltage can cause permanent damage to the IC.
  • The MAX1230BEEG+ is rated for operation up to 125°C, but its performance and accuracy may degrade at high temperatures. It's essential to follow the recommended operating conditions and to ensure that the device is properly cooled to prevent overheating. Additionally, the device's output voltage may drift with temperature, so it's necessary to consider this in the system design.
  • To troubleshoot issues with the MAX1230BEEG+, start by verifying that the input voltage is within the recommended range and that the external components are of high quality and properly connected. Check the layout and routing for any noise or signal integrity issues, and ensure that the device is properly decoupled and bypassed. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support for further assistance.
