MAX1239EEE+T - Analog Devices

Description: Analog to Digital Converters - ADC 2.7V to 3.6V and 4.5V to 5.5V, Low-Power, 4-/12-Channel, 2-Wire Serial, 12-Bit ADCs

Download MAX1239EEE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

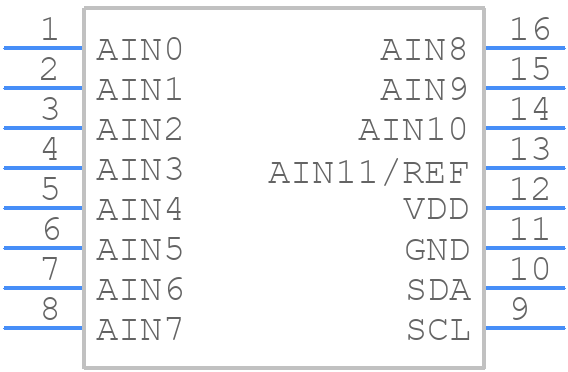

Symbol
MAX1239EEE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1239EEE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+4
click to zoom
3D Models
MAX1239EEE+T - Analog Devices - 3D model - Small Outline Packages - E16+4
click to zoom

MAX1239EEE+T Details

  • Manufacturer Part Number:

    MAX1239EEE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    SSOP, SSOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2002-05-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    1.024 V

  • Analog Input Voltage-Min:

    -1.024 V

  • Conversion Time-Max:

    7.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    12

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0944 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX1239EEE+T Frequently Asked Questions (FAQs)

  • The MAX1239EEE+T is a high-speed device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the guidelines provided in the datasheet, such as keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The MAX1239EEE+T has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. It is recommended to use a thermal interface material (TIM) between the thermal pad and the thermal plane to improve heat transfer. Additionally, the PCB should be designed to allow for good airflow around the device, and the device should be placed in a location that allows for good heat dissipation.
  • The recommended power-up sequence for the MAX1239EEE+T is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent damage or malfunction.
  • To troubleshoot issues with the MAX1239EEE+T, it is recommended to first check the power supply voltages and ensure that they are within the recommended range. Next, check the input signals and ensure that they are within the recommended range and that they are not noisy or distorted. If the issue persists, use a logic analyzer or oscilloscope to capture the input and output signals and compare them to the expected behavior. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The MAX1239EEE+T is not a radiation-hardened or high-reliability device, and it is not recommended for use in such applications. However, Analog Devices Inc. offers other devices that are specifically designed for radiation-hardened or high-reliability applications. It is recommended to consult with Analog Devices Inc. or a qualified radiation-hardening expert to determine the best device for the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1239EEE+T Overview

Use the download button to access the MAX1239EEE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX12, or try a keyword search, such as Analog to Digital Converters
