MAX1240CCSA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1240CCSA+ - ADC, 1-CH, SAR, 12BIT, 73KSPS, NSOIC-8

Download MAX1240CCSA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

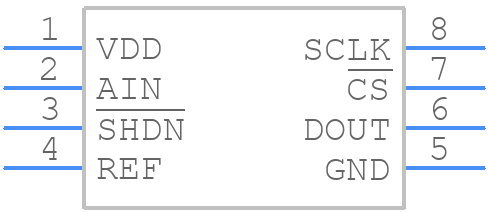

MAX1240CCSA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1240CCSA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO
click to zoom
3D Models
MAX1240CCSA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO
click to zoom

MAX1240CCSA+ Details

  • Manufacturer Part Number:

    MAX1240CCSA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    3A001.a.2.c

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1997-09-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.3 V

  • Conversion Time-Max:

    7.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-CDIP-T8

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.073 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX1240CCSA+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX1240CCSA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use short, direct traces for the analog signals and to avoid running digital signals near the analog signals.
  • The MAX1240CCSA+ requires a single 5V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirement is to power up the analog supply (VCC) before the digital supply (VDD), and to ensure that the analog supply is stable before applying any digital signals.
  • The maximum clock frequency for the MAX1240CCSA+ is 20MHz, and it's recommended to use a clock signal with a 50% duty cycle and a rise and fall time of less than 10ns. Additionally, the clock signal should be synchronized with the conversion process to ensure proper operation.
  • The MAX1240CCSA+ outputs 12-bit digital data in a serial format, with the most significant bit (MSB) first. The output data is available on the DOUT pin, and it's recommended to use a serial interface such as SPI or I2S to read the data. The output data format can be configured using the device's control registers.
  • The typical conversion time for the MAX1240CCSA+ is 2.5μs, which includes the acquisition time and the conversion time. The conversion time can affect the overall system performance, especially in high-speed applications. It's recommended to consider the conversion time when designing the system and to use the device's internal clock or an external clock to synchronize the conversion process.
