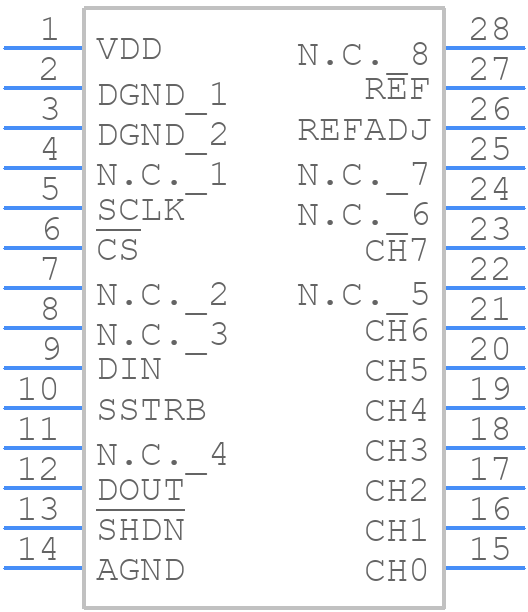

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX1270ACAI+
Part Number MAX1270ACAI+
Manufacturer Analog Devices
Pin Count 28
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SSOP-28
Released Date Dec 31, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX1270ACAI+ Details

Manufacturer Part Number:
MAX1270ACAI+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
28-SSOP-5.3_MM
Package Description:
5.3 MM, 0.65 MM PITCH, SSOP-28
Pin Count:
28
Manufacturer Package Code:
28-SSOP-5.3_MM
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.30
Date Of Intro:
1999-06-23
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog Input Voltage-Max:
4.096 V
Analog Input Voltage-Min:
-4.096 V
Conversion Time-Max:
11 µs
Converter Type:
ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code:
R-PDSO-G28
JESD-609 Code:
e3
Length:
10.2 mm
Linearity Error-Max (EL):
0.0122%
Moisture Sensitivity Level:
1
Number of Analog In Channels:
8
Number of Bits:
12
Number of Functions:
1
Number of Terminals:
28
Operating Temperature-Max:
70 °C
Output Bit Code:
BINARY, 2'S COMPLEMENT BINARY
Output Format:
SERIAL
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP28,.3
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Sample Rate:
0.009 MHz
Sample and Hold / Track and Hold:
TRACK
Seated Height-Max:
1.99 mm
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
5.29 mm
