MAX1281BEUP+ - Analog Devices

Description: MAX1281BEUP+, 12 bit ADC Differential, SPI, 20-Pin TSSOP

Download MAX1281BEUP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

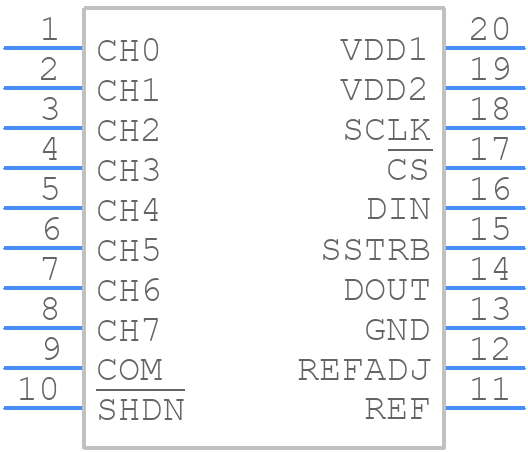

Symbol
MAX1281BEUP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1281BEUP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20 TSSOP
click to zoom
3D Models
MAX1281BEUP+ - Analog Devices - 3D model - Small Outline Packages - 20 TSSOP
click to zoom

MAX1281BEUP+ Details

  • Manufacturer Part Number:

    MAX1281BEUP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    ROHS COMPLIANT, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2000-06-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    1.25 V

  • Analog Input Voltage-Min:

    -1.25 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.3 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX1281BEUP+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX1281BEUP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX1281BEUP+ in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency noise sources. Additionally, consider using a ferrite bead or a common-mode choke on the power supply lines to reduce noise.
  • The maximum operating temperature range for the MAX1281BEUP+ is -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate the device within the recommended operating temperature range of -20°C to +85°C for optimal performance.
  • The power-up and power-down sequencing for the MAX1281BEUP+ involves powering up the analog power supply (VCC) before the digital power supply (VDD). During power-down, the digital power supply should be turned off before the analog power supply. This ensures that the device powers up and down correctly and prevents any potential damage.
  • The recommended input impedance for the MAX1281BEUP+ is 1 kΩ or higher. This ensures that the device can accurately measure the input signal and prevents any loading effects that may affect the measurement accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1281BEUP+ Overview

Use the download button to access the MAX1281BEUP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX12, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
