MAX1284BCSA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1284BCSA+ - Analogue to Digital Converter, 12 bit, 400 kSPS, Single Ended, SPI, Single, 4.5 V

Download MAX1284BCSA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

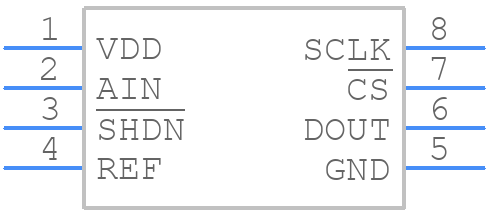

Symbol
MAX1284BCSA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1284BCSA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+5_
click to zoom
3D Models
MAX1284BCSA+ - Analog Devices - 3D model - Small Outline Packages - S8+5_
click to zoom

MAX1284BCSA+ Details

  • Manufacturer Part Number:

    MAX1284BCSA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    ROHS COMPLIANT, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2000-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.4 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX1284BCSA+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX1284BCSA+ involves keeping the analog and digital grounds separate, using a star-ground configuration, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals under the analog input pins.
  • The MAX1284BCSA+ has internal ESD protection, but it's still recommended to add external ESD protection devices, such as TVS diodes or ESD arrays, to protect the device from electrostatic discharge. Additionally, it's recommended to follow proper PCB design and layout practices to minimize the risk of ESD damage.
  • The MAX1284BCSA+ has an operating temperature range of -40°C to +85°C, but it's recommended to derate the device's performance at higher temperatures. It's also important to ensure proper thermal management and heat dissipation to prevent overheating.
  • The MAX1284BCSA+ can be programmed using an external microcontroller or a dedicated programming device. The device has a serial interface that allows for programming of the gain and offset settings. The specific programming procedure can be found in the device's datasheet and programming guide.
  • The recommended power-up sequence for the MAX1284BCSA+ involves powering up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the interface signals. This ensures that the device powers up correctly and minimizes the risk of latch-up or other power-up related issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1284BCSA+ Overview

Use the download button to access the MAX1284BCSA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX12, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
