MAX1301BEUP+ - Analog Devices

Description: Analog to Digital Converters - ADC 4-Channel, +/-3 x VREF Multirange Inputs, Serial 16-Bit ADCs

Download MAX1301BEUP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

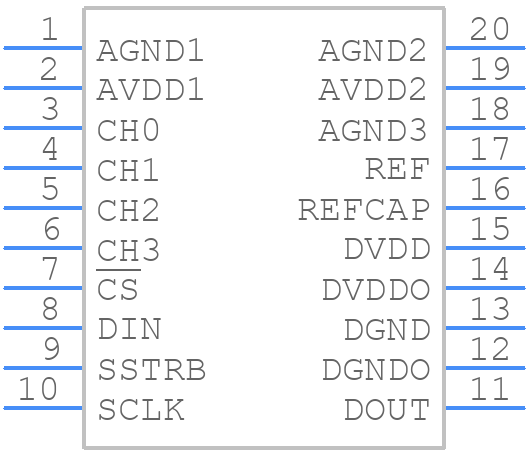

MAX1301BEUP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1301BEUP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U20+2_2022
click to zoom
3D Models
MAX1301BEUP+ - Analog Devices - 3D model - Small Outline Packages - U20+2_2022
click to zoom

MAX1301BEUP+ Details

  • Manufacturer Part Number:

    MAX1301BEUP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, ROHS COMPLIANT, MO-153AC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2006-11-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    24.576 V

  • Analog Input Voltage-Min:

    -24.576 V

  • Conversion Time-Max:

    9.4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.115 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX1301BEUP+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX1301BEUP+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, the device should be placed near the power source to minimize voltage drops.
  • To ensure the MAX1301BEUP+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which involves applying the power supply voltage to the device before applying the input signal. Also, ensure that the input signal is within the specified range and that the device is properly configured through the EN and SHDN pins.
  • Common pitfalls to avoid when designing with the MAX1301BEUP+ include not following the recommended layout and placement, not using the correct input and output capacitors, not properly configuring the device through the EN and SHDN pins, and not ensuring the input signal is within the specified range.
  • To troubleshoot issues with the MAX1301BEUP+, start by checking the power supply voltage and ensuring it is within the specified range. Then, verify that the input signal is within the specified range and that the device is properly configured through the EN and SHDN pins. Use an oscilloscope to check the output signal and look for any signs of oscillation or instability.
  • The MAX1301BEUP+ has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated at a junction temperature below 125°C. This can be achieved by using a heat sink, reducing the power supply voltage, or reducing the output current.
