MAX13052ASA+T - Analog Devices

Description: CAN Interface IC Industry-Standard High-Speed CAN Transceivers with 80V Fault Protection

Download MAX13052ASA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

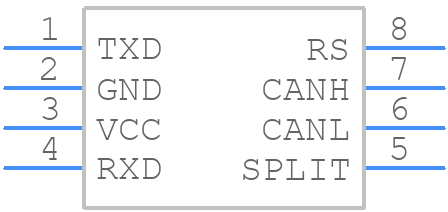

MAX13052ASA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX13052ASA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX13052ASA+T - Analog Devices - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX13052ASA+T Details

  • Manufacturer Part Number:

    MAX13052ASA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, LEAD FREE, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2005-02-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX13052ASA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX13052ASA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX13052ASA+T requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the power supply can provide the required current during startup.
  • The recommended input impedance for the MAX13052ASA+T is 1kΩ to 10kΩ. A higher input impedance can lead to increased noise sensitivity, while a lower input impedance can result in reduced input signal amplitude. The optimal input impedance depends on the specific application and signal source.
  • To troubleshoot common issues with the MAX13052ASA+T, start by checking the power supply voltage, input signal integrity, and PCB layout. Verify that the device is properly powered and that the input signals are within the specified range. Use an oscilloscope to check for oscillations or incorrect output voltage, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The MAX13052ASA+T has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's recommended to use a heat sink or thermal pad to dissipate heat, and to keep the device away from high-temperature components. Additionally, ensure that the PCB is designed to minimize thermal resistance and that the device is operated within the specified temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX13052ASA+T Overview

Use the download button to access the MAX13052ASA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX13, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
