MAX1324ECM+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1324ECM+ - ADC, 8-CH, SAR, 14BIT, 526KSPS, LQFP-48

Download MAX1324ECM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

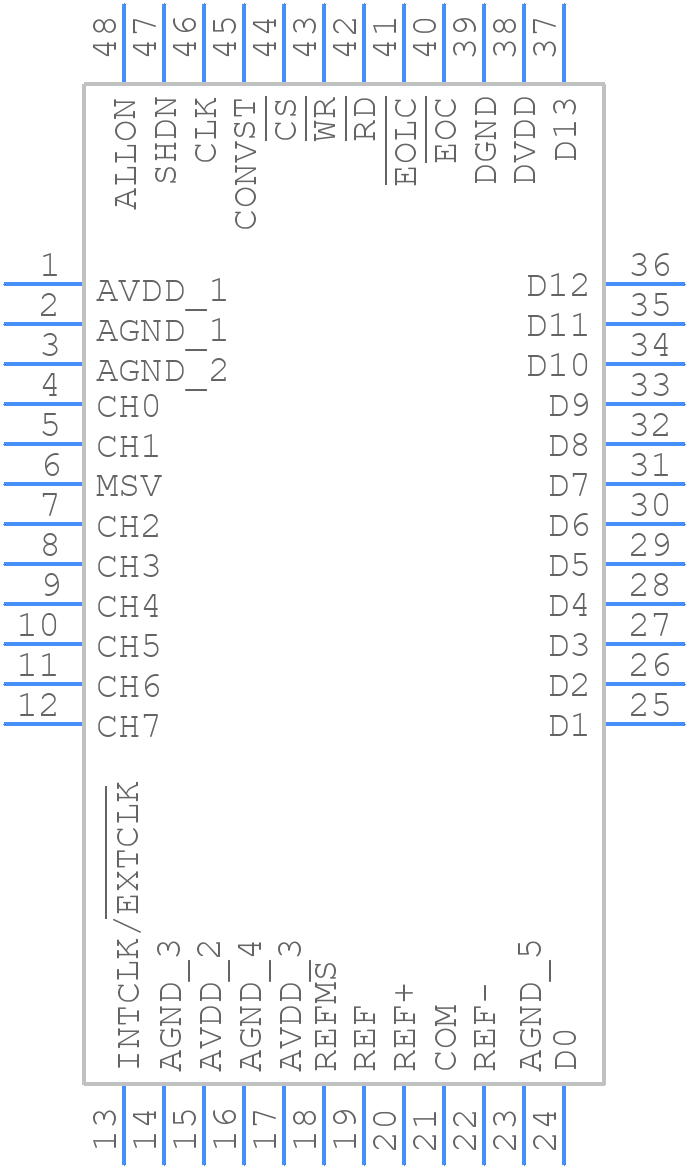

Symbol
MAX1324ECM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1324ECM+ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 LQFP
click to zoom
3D Models
MAX1324ECM+ - Analog Devices - 3D model - Quad Flat Packages - 48 LQFP
click to zoom

MAX1324ECM+ Details

  • Manufacturer Part Number:

    MAX1324ECM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LQFP-7X7X1.4

  • Package Description:

    7 X 7 MM, 1.40 MM HEIGHT, MS-026BBC, TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LQFP-7X7X1.4

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2004-02-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    3.7 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX1324ECM+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX1324ECM+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and interference.
  • To optimize the performance of the MAX1324ECM+ in noisy environments, use a low-pass filter on the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded cable for the input signal. Additionally, consider using a separate analog power supply and grounding the device to a quiet ground point.
  • The maximum operating temperature range for the MAX1324ECM+ is -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • Yes, the MAX1324ECM+ is suitable for high-reliability and aerospace applications. It's manufactured using a high-reliability process and is qualified to various industry standards, including MIL-STD-883 and NASA's EEE-INST-002. However, it's recommended to consult with Analog Devices Inc. for specific requirements and qualifications.
  • To troubleshoot common issues with the MAX1324ECM+, start by checking the power supply voltage, input signal integrity, and output loading. Use an oscilloscope to verify the input and output waveforms, and check for any signs of oscillation or instability. Consult the datasheet and application notes for specific troubleshooting guidelines.
