MAX1403EAI+ - Analog Devices

Description: ♦ 18-Bit Resolution, Sigma-Delta ADC ♦ 16-Bit Accuracy with No Missing Codes to 480sps ♦ Matched On-Board Current Sources (200µA) for Sensor Excitation ♦ Low Quiescent Current 250µA (operating mode) 2µA (power-down mode) ♦ 3 Fully Differential or 5 Pseudo-Differential Signal Input Channels ♦ 2 Additional, Fully Differential Calibration Channels/Auxiliary Input Channels ♦ Programmable Gain and Offset ♦ Fully Differential Reference Inputs ♦ Converts Continuously or On Command ♦ Automatic Channel

Download MAX1403EAI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

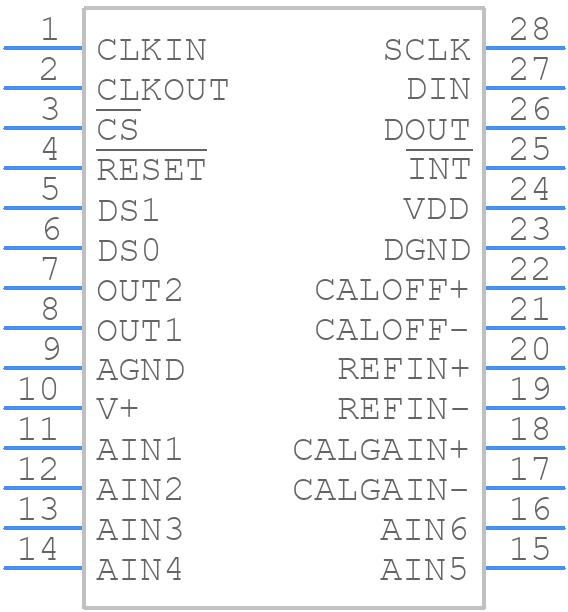

MAX1403EAI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

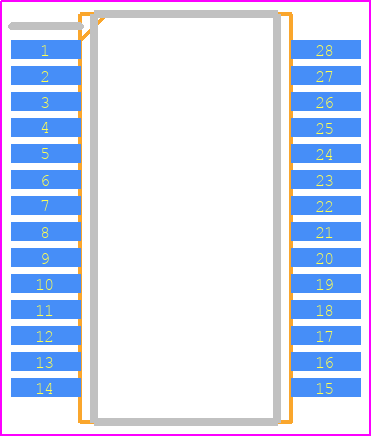

MAX1403EAI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0056
click to zoom
3D Models
MAX1403EAI+ - Analog Devices - 3D model - Small Outline Packages - 21-0056
click to zoom

MAX1403EAI+ Details

  • Manufacturer Part Number:

    MAX1403EAI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    5.30 MM, ROHS COMPLIANT, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1999-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    1.25 V

  • Analog Input Voltage-Min:

    -1.25 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    5

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm
