MAX1403EAI+T - Analog Devices

MAX1403EAI+T Details

• Manufacturer Part Number:

  MAX1403EAI+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

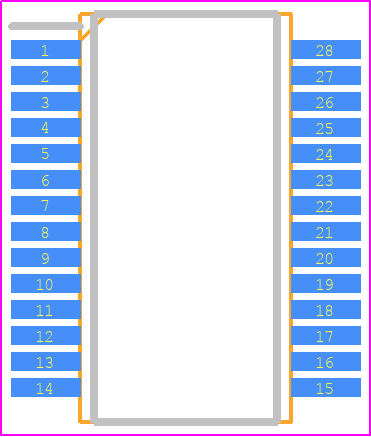

• Part Package Code:

  28-SSOP-5.3_MM

• Package Description:

  5.30 MM, ROHS COMPLIANT, SSOP-28

• Pin Count:

  28

• Manufacturer Package Code:

  28-SSOP-5.3_MM

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.30

• Date Of Intro:

  1999-04-07

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog Input Voltage-Max:

  1.25 V

• Analog Input Voltage-Min:

  -1.25 V

• Converter Type:

  ADC, DELTA-SIGMA

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e3

• Length:

  10.2 mm

• Linearity Error-Max (EL):

  0.0015%

• Moisture Sensitivity Level:

  1

• Number of Analog In Channels:

  5

• Number of Bits:

  18

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP28,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.99 mm

• Supply Current-Max:

  10 mA

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5.29 mm
