MAX14430EAEE+ - Analog Devices

Description: Four-Channel, Fast, Low-Power, 3kVRMS and 3.75kVRMS Digital Isolators

Download MAX14430EAEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

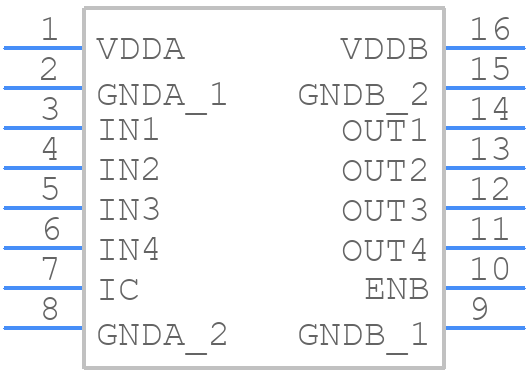

MAX14430EAEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

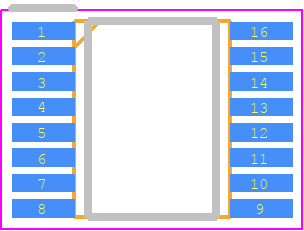

MAX14430EAEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16MS+1F
click to zoom
3D Models
MAX14430EAEE+ - Analog Devices - 3D model - Small Outline Packages - E16MS+1F
click to zoom

MAX14430EAEE+ Details

  • Manufacturer Part Number:

    MAX14430EAEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-05-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX14430EAEE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX14430EAEE+ can be found in the MAX14430 Evaluation Kit documentation, which includes a layout guide and Gerber files. Additionally, Analog Devices provides a PCB layout checklist in the device's datasheet.
  • To optimize the performance of the MAX14430EAEE+, engineers should consider factors such as input impedance, output loading, and PCB layout. Analog Devices provides application notes and design guides that provide guidance on optimizing performance in specific applications.
  • The MAX14430EAEE+ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and engineers should consult the datasheet for specific temperature-related specifications.
  • Yes, the MAX14430EAEE+ is suitable for high-reliability and automotive applications. Analog Devices provides additional documentation and support for these applications, including AEC-Q100 qualification and PPAP documentation.
  • To troubleshoot issues with the MAX14430EAEE+, engineers should consult the device's datasheet and application notes, as well as Analog Devices' technical support resources, including FAQs, knowledge base articles, and support forums.
