MAX14431CAEE+ - Analog Devices

Description: Four-Channel, Fast, Low-Power, 3kVRMS and 3.75kVRMS Digital Isolators

Download MAX14431CAEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

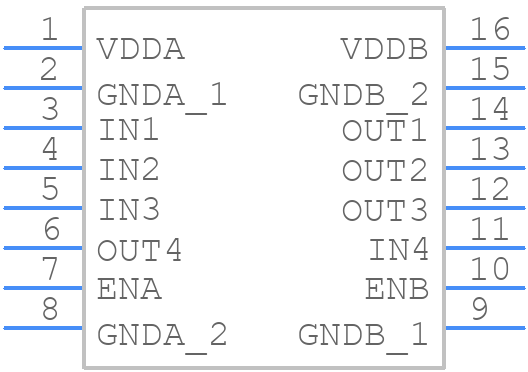

MAX14431CAEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14431CAEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16MS+1F
click to zoom
3D Models
MAX14431CAEE+ - Analog Devices - 3D model - Small Outline Packages - E16MS+1F
click to zoom

MAX14431CAEE+ Details

  • Manufacturer Part Number:

    MAX14431CAEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-05-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX14431CAEE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX14431CAEE+ is to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise and EMI. Additionally, it's recommended to place a 10nF capacitor between the VCC and GND pins to filter out high-frequency noise.
  • To ensure the MAX14431CAEE+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet. Apply VCC first, followed by VLOGIC, and then the input signals. Also, ensure that the input signals are within the specified voltage range and that the device is properly reset after power-up.
  • The maximum operating frequency of the MAX14431CAEE+ is 100MHz. However, the actual operating frequency may be limited by the specific application and the quality of the input signals.
  • To troubleshoot issues with the MAX14431CAEE+, start by checking the power supply and input signals to ensure they are within the specified range. Use an oscilloscope to verify the input and output waveforms, and check for any signs of noise or distortion. Also, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
  • The MAX14431CAEE+ is compatible with 1.8V to 3.3V logic levels. It's not recommended to use it with 5V logic levels, as it may exceed the maximum rating of the device and cause damage or malfunction.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14431CAEE+ Overview

Use the download button to access the MAX14431CAEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
