MAX14432FASE+ - Analog Devices

Description: Four-Channel, Fast, Low-Power, 3kVRMS and 3.75kVRMS Digital Isolators

Download MAX14432FASE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

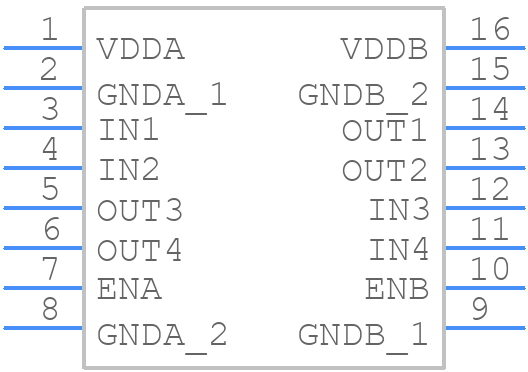

MAX14432FASE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14432FASE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16MS+12
click to zoom
3D Models
MAX14432FASE+ - Analog Devices - 3D model - Small Outline Packages - S16MS+12
click to zoom

MAX14432FASE+ Details

  • Manufacturer Part Number:

    MAX14432FASE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-05-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX14432FASE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14432FASE+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input and output capacitors should be chosen based on the specific application requirements. For the input capacitor, a low-ESR ceramic capacitor with a value between 1uF to 10uF is recommended. For the output capacitor, a low-ESR ceramic capacitor with a value between 10uF to 22uF is recommended. The capacitor values and types may need to be adjusted based on the specific output voltage and current requirements.
  • The MAX14432FASE+ has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • To ensure proper power-up and power-down of the MAX14432FASE+, it's recommended to follow a controlled power-up sequence. The EN pin should be driven high after the input voltage has reached its nominal value. During power-down, the EN pin should be driven low before the input voltage is removed. Additionally, the device should be powered up and down slowly to prevent voltage spikes and noise.
  • The recommended input voltage range for the MAX14432FASE+ is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability. It's recommended to use a voltage regulator or a power supply with a tight voltage tolerance to ensure the input voltage remains within the recommended range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14432FASE+ Overview

Use the download button to access the MAX14432FASE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs
