MAX14508EEVB+T - Analog Devices

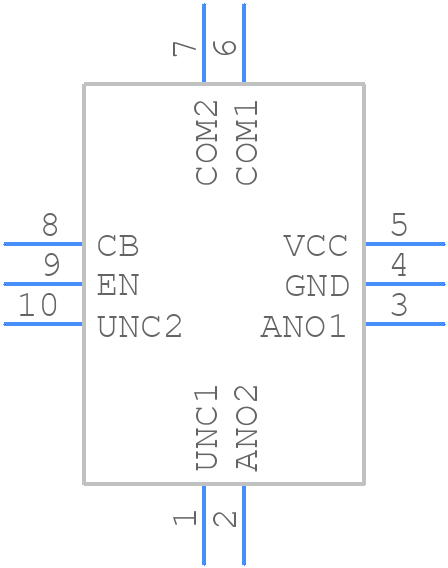

MAX14508EEVB+T Details

• Manufacturer Part Number:

  MAX14508EEVB+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  10-LFCSP-1.4X1.8X0.5

• Package Description:

  1.40 X 1.80 MM, ROHS COMPLIANT, UTQFN-10

• Pin Count:

  10

• Manufacturer Package Code:

  10-LFCSP-1.4X1.8X0.5

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2008-05-23

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog IC - Other Type:

  DPDT

• JESD-30 Code:

  R-XQCC-N10

• JESD-609 Code:

  e4

• Length:

  1.8 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  10

• Off-state Isolation-Nom:

  65 dB

• On-state Resistance Match-Nom:

  0.2 Ω

• On-state Resistance-Max (Ron):

  5 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VQCCN

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.55 mm

• Signal Current-Max:

  0.1 A

• Supply Current-Max (Isup):

  0.012 mA

• Supply Voltage-Max (Vsup):

  5 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  5000 ns

• Switch-on Time-Max:

  60000 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.4 mm
