MAX14575CETA+T - Analog Devices

Description: Power Switch ICs - Power Distribution 250mA to 2.5A Adjustable Current-Limit Switch

Download MAX14575CETA+T Model

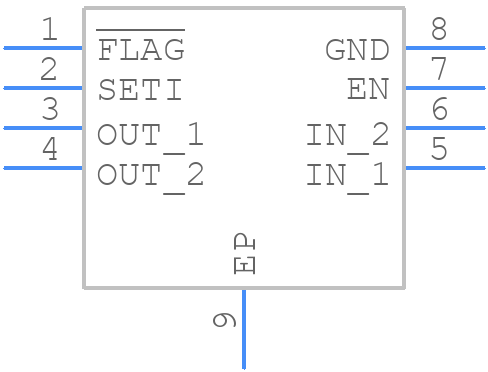

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX14575CETA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 TDFN-EP-
click to zoom
3D Models
MAX14575CETA+T - Analog Devices  - 3D model - Small Outline No-lead - 8 TDFN-EP-
click to zoom

MAX14575CETA+T Details

  • Manufacturer Part Number:

    MAX14575CETA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CURRENT LIMIT:2.75A; THERMAL SHUTDOWN:160C; ADJUSTABLE CURRENT LIMIT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX14575CETA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14575CETA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for power and ground to minimize noise and EMI.
  • The MAX14575CETA+T has a thermal pad on the bottom of the package that should be connected to a thermal plane on the PCB. This helps to dissipate heat efficiently. Additionally, it's recommended to use a heat sink or a thermal interface material to further improve thermal management. In high-power applications, it's also important to ensure good airflow around the device.
  • The MAX14575CETA+T is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, if it's necessary to use the device in such an environment, it's essential to take precautions such as conformal coating, potting, or using a moisture-resistant package. Additionally, the device should be stored in a dry environment before use.
  • To troubleshoot issues with the MAX14575CETA+T, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly configured and that the input voltage is within the recommended range. Use an oscilloscope to check for noise or oscillations on the output voltage. Also, check the PCB layout and ensure that it meets the recommended layout guidelines.
  • Yes, the MAX14575CETA+T is suitable for battery-powered devices that require low quiescent current. The device has a low quiescent current of 15μA in shutdown mode and 60μA in active mode. However, it's essential to ensure that the device is properly configured and that the input voltage is within the recommended range to minimize quiescent current.
