MAX14663ETL+ - Analog Devices

Description: Portable Medical Power Management Solution with Cable Detection

Download MAX14663ETL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

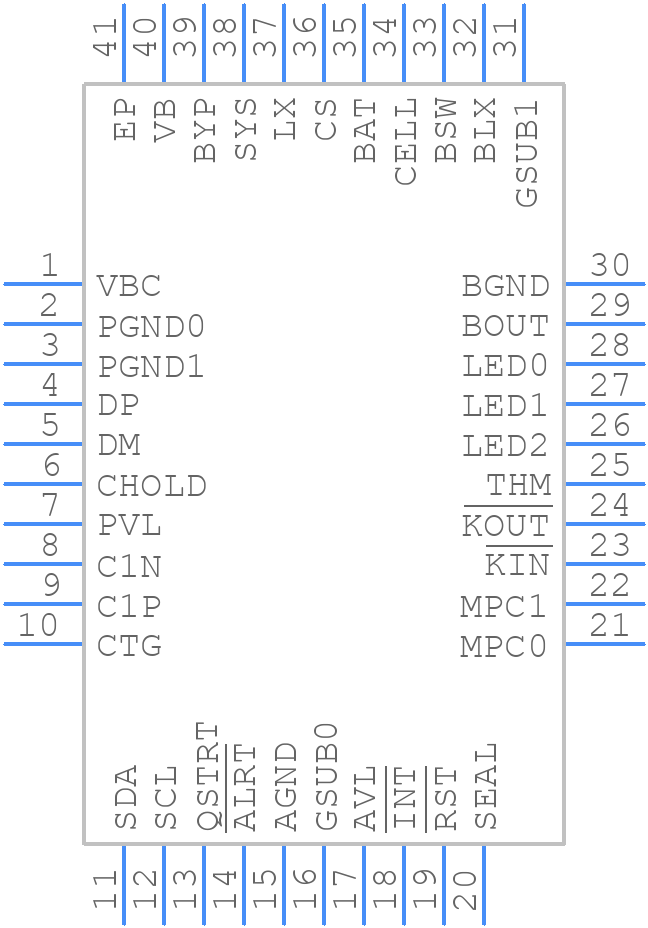

Symbol
MAX14663ETL+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14663ETL+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4055+1
click to zoom
3D Models
MAX14663ETL+ - Analog Devices - 3D model - Quad Flat No-Lead - T4055+1
click to zoom

MAX14663ETL+ Details

  • Manufacturer Part Number:

    MAX14663ETL+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-LFCSP-5X5X0.75

  • Package Description:

    TQFN-EP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2014-03-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX14663ETL+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14663ETL+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power source and load.
  • To ensure the MAX14663ETL+ operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. This can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, the device should be mounted on a PCB with a thermal vias to dissipate heat effectively.
  • The recommended input capacitor value for the MAX14663ETL+ is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR capacitor is recommended to minimize voltage ripple and ensure stable operation. The input capacitor should be placed as close as possible to the VIN pin of the device.
  • To troubleshoot issues with the MAX14663ETL+, start by checking the input voltage and ensuring it's within the specified range. Verify that the device is properly connected to the power source and load, and that the PCB layout is correct. Use an oscilloscope to check for voltage ripple, noise, and oscillations. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support.
  • Yes, the MAX14663ETL+ is suitable for high-reliability applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines, including using a robust PCB design, selecting high-reliability components, and implementing adequate testing and validation procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14663ETL+ Overview

Use the download button to access the MAX14663ETL+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
