MAX14724EWP+T - Analog Devices

Description: Serial-Controlled 8:4 Matrix Switch Multiplexer

Download MAX14724EWP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

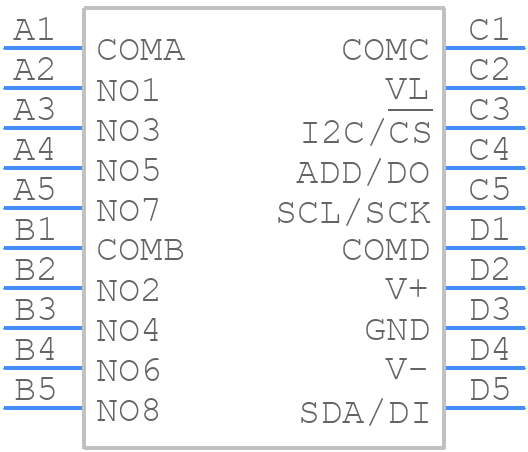

MAX14724EWP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14724EWP+T - Analog Devices PCB footprint - BGA - BGA - W201C2+1
click to zoom
3D Models
MAX14724EWP+T - Analog Devices - 3D model - BGA - W201C2+1
click to zoom

MAX14724EWP+T Details

  • Manufacturer Part Number:

    MAX14724EWP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-WLCSP-N/A

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-06-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Logic IC Type:

    MULTIPLEXER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX14724EWP+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14724EWP+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX14724EWP+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input and output signals. A good starting point is to use 1uF to 10uF capacitors for both input and output.
  • The MAX14724EWP+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the output voltage may vary. It's essential to ensure that the device is operated within the recommended temperature range for optimal performance and reliability.
  • To troubleshoot issues with the MAX14724EWP+T, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is operated within the recommended temperature range. Use an oscilloscope to measure the output voltage and input voltage ripple. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines, and consider contacting Analog Devices' technical support for further assistance.
  • Yes, the MAX14724EWP+T is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade ICs. However, it's essential to ensure that the device is operated within the recommended temperature range and that the PCB layout and design meet the requirements of the specific application. Additionally, consult with Analog Devices' technical support to discuss any specific requirements or concerns.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14724EWP+T Overview

Use the download button to access the MAX14724EWP+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Multiplexer/Demultiplexers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
