MAX1473EUI+ - Analog Devices

Description: MAX1473EUI+, RF Receiver Chip 300 to 450MHz, ASK, 5V 28-Pin TSSOP

Download MAX1473EUI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

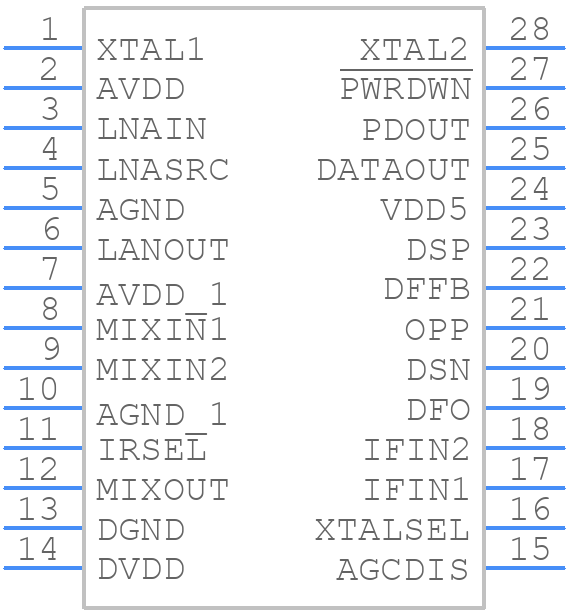

MAX1473EUI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1473EUI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28 TSSOP
click to zoom
3D Models
MAX1473EUI+ - Analog Devices - 3D model - Small Outline Packages - 28 TSSOP
click to zoom

MAX1473EUI+ Details

  • Manufacturer Part Number:

    MAX1473EUI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-01-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX1473EUI+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX1473EUI+ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To optimize the performance of the MAX1473EUI+ in a high-temperature environment, it's recommended to use a heat sink, ensure good airflow, and reduce the power dissipation of the device. Additionally, the device can be derated to reduce the power dissipation and junction temperature.
  • The recommended input capacitance for the MAX1473EUI+ is 10nF to 100nF, and the recommended output capacitance is 10nF to 100nF. However, the optimal capacitance values may vary depending on the specific application and operating conditions.
  • To troubleshoot common issues with the MAX1473EUI+, such as oscillation or instability, it's recommended to check the power supply, input and output connections, and PCB layout. Additionally, ensure that the device is operated within the recommended operating conditions, and that the input and output capacitors are properly selected.
  • The recommended ESD protection for the MAX1473EUI+ involves using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines. Additionally, it's recommended to follow proper handling and storage procedures to prevent ESD damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1473EUI+ Overview

Use the download button to access the MAX1473EUI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
