MAX1473EUI+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1473EUI+T - RF Home Automation, 300MHz to 450MHz, ASK, -114dBm, 100Kbps, 4.5V to 5.5V Supply, TSSOP-28

Download MAX1473EUI+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

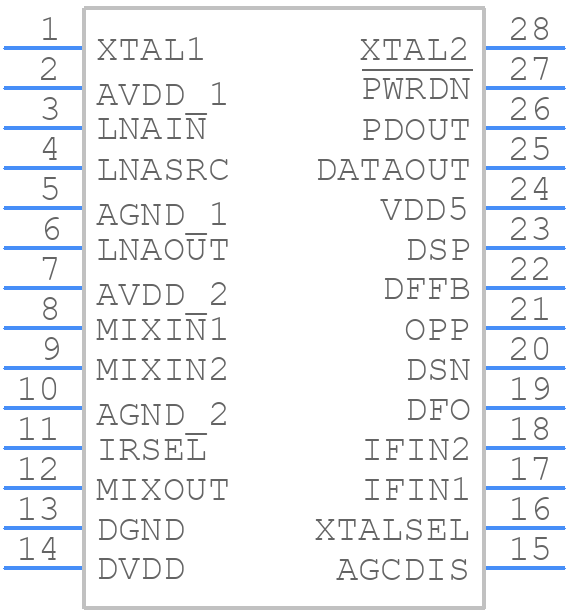

MAX1473EUI+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1473EUI+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - u28+1
click to zoom
3D Models
MAX1473EUI+T - Analog Devices - 3D model - Small Outline Packages - u28+1
click to zoom

MAX1473EUI+T Details

  • Manufacturer Part Number:

    MAX1473EUI+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-TSSOP_4.4-4.4_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-01-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX1473EUI+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX1473EUI+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VDD. Also, ensure that the input voltage is within the recommended range, and that the device is properly decoupled with capacitors.
  • The MAX1473EUI+T has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX1473EUI+T, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly powered up and initialized, and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, the MAX1473EUI+T is suitable for use in high-reliability and safety-critical applications, such as automotive, industrial, and medical devices. However, it's essential to follow proper design and testing procedures to ensure the device meets the required safety and reliability standards.
