MAX14776EATA+ - Analog Devices

Description: RS-485/RS-422 Transceivers 65V Protected

Download MAX14776EATA+ Model

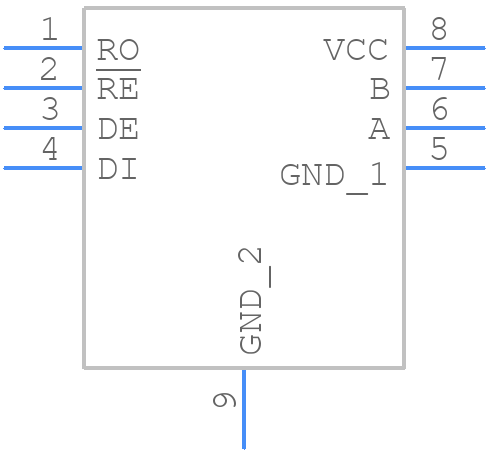

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX14776EATA+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - MAX14776EATA+-1
click to zoom
3D Models
MAX14776EATA+ - Analog Devices  - 3D model - Small Outline No-lead - MAX14776EATA+-1
click to zoom

MAX14776EATA+ Details

  • Manufacturer Part Number:

    MAX14776EATA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-02-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485; TIA-485

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    5.3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1000 ns

  • Width:

    3 mm

MAX14776EATA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14776EATA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power source and the load.
  • To ensure the stability of the output voltage, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to use a high-quality output capacitor with low ESR and a sufficient capacitance value. It's also recommended to add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve the transient response.
  • The MAX14776EATA+ can handle input voltages up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
  • The MAX14776EATA+ is rated for operation up to 125°C, but it's essential to follow the recommended derating guidelines for the output current and power dissipation at high temperatures. Additionally, make sure to use a suitable thermal management strategy, such as a heat sink or a thermal pad, to keep the device temperature within the recommended range.
  • To troubleshoot issues with the MAX14776EATA+, start by checking the input voltage, output voltage, and output current using an oscilloscope or a multimeter. Verify that the device is properly connected and that the input and output capacitors are correctly sized. Check the PCB layout for any signs of damage or contamination, and ensure that the device is operated within the recommended specifications.
