MAX14782EASA+T - Analog Devices

Description: RS-422/RS-485 Interface IC Half duplex, dual voltage (3V to 5.5V), high ESD HBM (+/-35kV), 500kbps, automotive temp range (-40C to

Download MAX14782EASA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

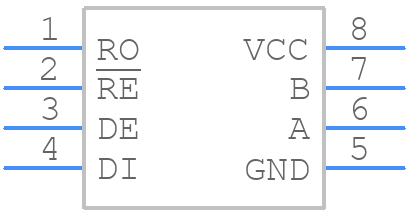

MAX14782EASA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14782EASA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX14782EASA+T - Analog Devices - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX14782EASA+T Details

  • Manufacturer Part Number:

    MAX14782EASA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-08-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.02 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    20 ns

  • Width:

    3.9 mm

MAX14782EASA+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX14782EASA+T can be found in the MAX14782EASA+T Evaluation Kit documentation, which includes a detailed layout guide and Gerber files. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for optimal performance.
  • To optimize the performance of the MAX14782EASA+T, it's essential to follow the recommended layout and routing guidelines, ensure proper power supply decoupling, and optimize the input and output termination. Additionally, Analog Devices provides application notes and design tools, such as the MAX14782EASA+T IBIS model, to help engineers optimize their design.
  • The MAX14782EASA+T is specified to operate from -40°C to +125°C, but it's essential to note that the device's performance may degrade at higher temperatures. Engineers should consult the datasheet and application notes for guidance on temperature-related performance considerations.
  • While the MAX14782EASA+T is AEC-Q100 qualified, making it suitable for automotive applications, it can also be used in non-automotive applications where high-speed, low-power, and low-latency signal transmission is required. However, engineers should ensure that the device meets their specific application requirements and comply with relevant industry standards.
  • Analog Devices provides a range of resources to help engineers troubleshoot issues with the MAX14782EASA+T, including application notes, FAQs, and design tools. Engineers can also contact Analog Devices' technical support team for assistance with specific design-related issues.
