MAX14783EATA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX14783EATA+T - Transceiver, RS422, RS485, Half Duplex, 42Mbp, 1 Driver, 3 V to 5.5 V Supply, TDFN-8

Download MAX14783EATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

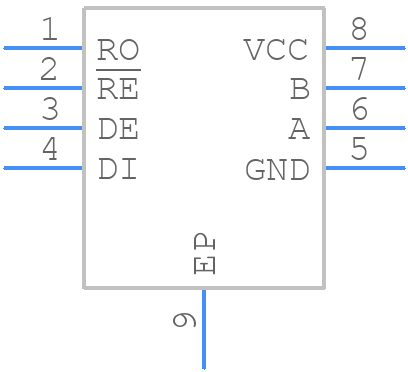

MAX14783EATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14783EATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833+2_1
click to zoom
3D Models
MAX14783EATA+T - Analog Devices - 3D model - Small Outline No-lead - T833+2_1
click to zoom

MAX14783EATA+T Details

  • Manufacturer Part Number:

    MAX14783EATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-06-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    25 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    20 ns

  • Width:

    3 mm

MAX14783EATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14783EATA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • To ensure proper power-up and initialization of the MAX14783EATA+T, make sure to follow the recommended power-up sequence, which involves applying the power supply voltage to the device before applying the input signals. Also, ensure that the device is properly reset by asserting the RESET pin low for at least 10ns.
  • The MAX14783EATA+T is rated for operation over the industrial temperature range of -40°C to +85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • To troubleshoot issues with the MAX14783EATA+T, start by verifying the power supply voltage and input signals. Check for any signs of overheating, such as excessive temperature or current consumption. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet for troubleshooting guidelines specific to the device.
  • The MAX14783EATA+T is a high-reliability device, but it's essential to follow proper design and testing procedures to ensure the device meets the requirements of the specific application. Consult the datasheet and relevant industry standards, such as IEC 61508 or ISO 26262, for guidance on using the device in safety-critical applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14783EATA+T Overview

Use the download button to access the MAX14783EATA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
