MAX1480CCPI+ - Analog Devices

Description: Complete, Isolated RS-485/RS-422 Data Interface

Download MAX1480CCPI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

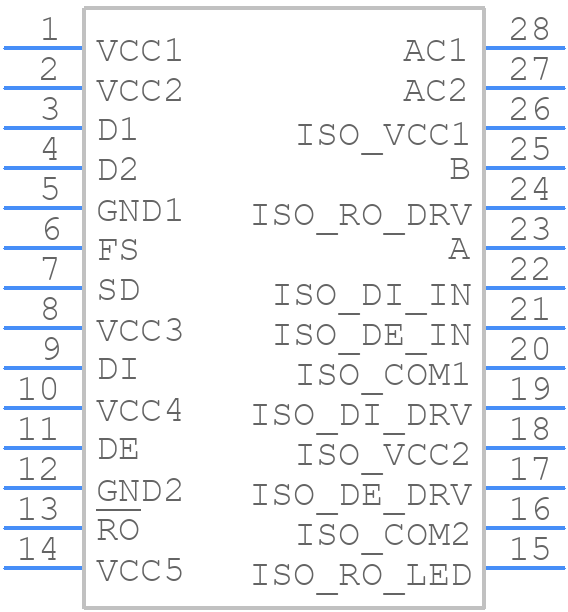

MAX1480CCPI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

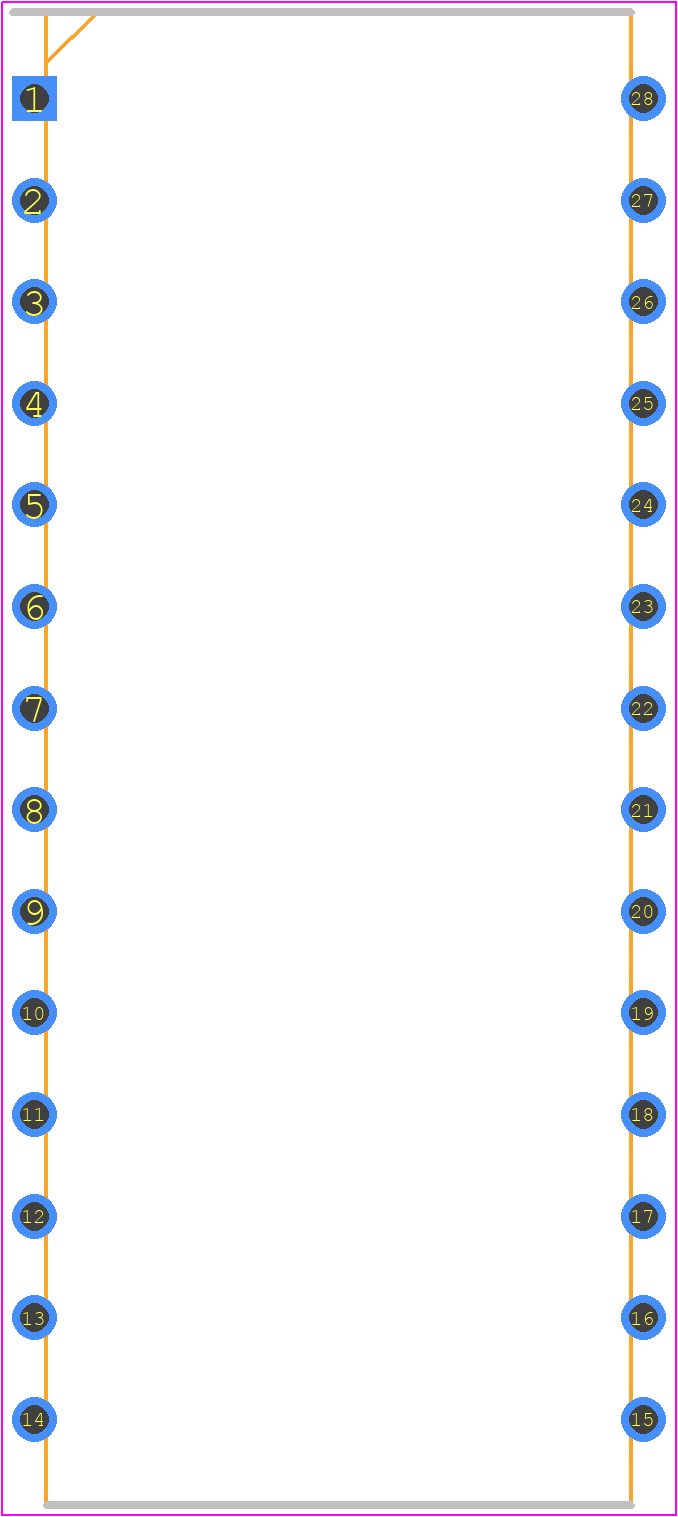

MAX1480CCPI+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P28M+1
click to zoom
3D Models
MAX1480CCPI+ - Analog Devices - 3D model - Dual-In-Line Packages - P28M+1
click to zoom

MAX1480CCPI+ Details

  • Manufacturer Part Number:

    MAX1480CCPI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-PDIP-600_MIL

  • Package Description:

    0.600 INCH, PLASTIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-PDIP-600_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    COMMON I/O; ISOLATED DATA INTERFACE

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    36.83 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    3000 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    75 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    3000 ns

  • Width:

    15.24 mm

MAX1480CCPI+ Frequently Asked Questions (FAQs)

  • The MAX1480CCPI+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce EMI.
  • To optimize the MAX1480CCPI+ for low power consumption, ensure that the input voltage is within the recommended range, use a low-ESR capacitor for the VCC bypass, and minimize the output load capacitance. Additionally, consider using the shutdown mode to reduce power consumption when the device is not in use.
  • The MAX1480CCPI+ has an operating temperature range of -40°C to +125°C. However, it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • Common issues with the MAX1480CCPI+ include output voltage droop, oscillations, and overheating. To troubleshoot these issues, check the input voltage, output load, and layout for any errors or inconsistencies. Use an oscilloscope to monitor the output voltage and current, and ensure that the device is properly heatsinked.
  • Yes, the MAX1480CCPI+ is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100 and is designed to operate in harsh environments. However, it is recommended to follow the guidelines provided in the datasheet and to consult with Analog Devices Inc. for specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1480CCPI+ Overview

Use the download button to access the MAX1480CCPI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
