MAX14819ATM+ - Analog Devices

Description: Maxim MAX14819ATM+ Framer & Line Interface, 5 V, 48-Pin TQFN-EP

Download MAX14819ATM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

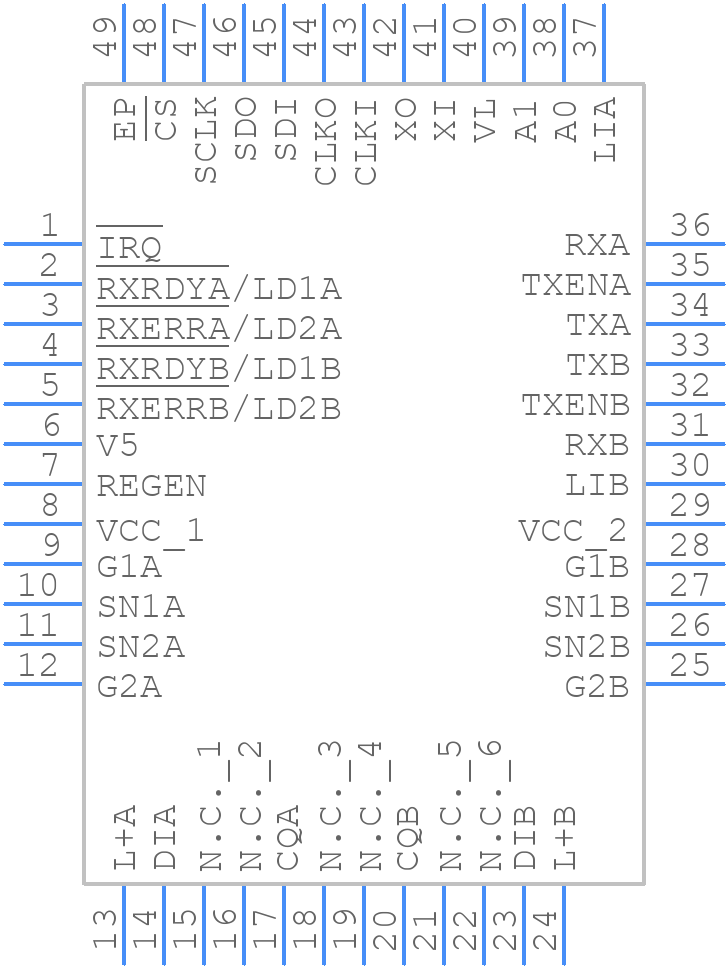

MAX14819ATM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14819ATM+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 TQFN-EP1
click to zoom
3D Models
MAX14819ATM+ - Analog Devices - 3D model - Quad Flat No-Lead - 48 TQFN-EP1
click to zoom

MAX14819ATM+ Details

  • Manufacturer Part Number:

    MAX14819ATM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Package Description:

    TQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-06-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Rate:

    230 Mbps

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    IO-LINK TRANSCIEVERS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX14819ATM+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX14819ATM+ can be found in the MAX14819 Evaluation Kit User Guide (UG-1143) and the MAX14819 Layout and Routing Guidelines application note (AN-1144). These resources provide detailed guidance on PCB layout, component placement, and routing to ensure optimal performance and minimize noise.
  • The MAX14819ATM+ is a highly configurable device that can be programmed to support various communication protocols such as UART, SPI, I2C, and others. The configuration is done through the device's registers, which can be accessed through the SPI interface. The MAX14819 datasheet provides a detailed description of the register map and the configuration options. Additionally, the MAX14819 Evaluation Kit User Guide (UG-1143) provides examples of configuration settings for different protocols.
  • The maximum cable length supported by the MAX14819ATM+ depends on the specific application and the type of cable used. In general, the device can support cable lengths up to 100 meters or more, depending on the signal frequency and the cable's attenuation characteristics. However, it's recommended to consult the MAX14819 datasheet and application notes for specific guidance on cable length and signal integrity.
  • Troubleshooting issues with the MAX14819ATM+ typically involves a combination of hardware and software debugging techniques. The MAX14819 datasheet provides a troubleshooting guide that covers common issues and their solutions. Additionally, the MAX14819 Evaluation Kit User Guide (UG-1143) provides guidance on using the evaluation kit's built-in debugging tools and software. It's also recommended to consult the device's errata sheet and application notes for specific guidance on troubleshooting and debugging.
  • The MAX14819ATM+ is a high-power device that requires proper thermal management to ensure reliable operation. The device's thermal characteristics are specified in the datasheet, and the application notes provide guidance on thermal management techniques such as heat sinking, thermal interface materials, and PCB design considerations. It's recommended to consult the MAX14819 datasheet and application notes for specific guidance on thermal management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14819ATM+ Overview

Use the download button to access the MAX14819ATM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
