MAX14819ATM+T - Analog Devices

Description: Dual IO-Link Master Transceiver with Integrated Framers and L+ Supply Controllers

Download MAX14819ATM+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

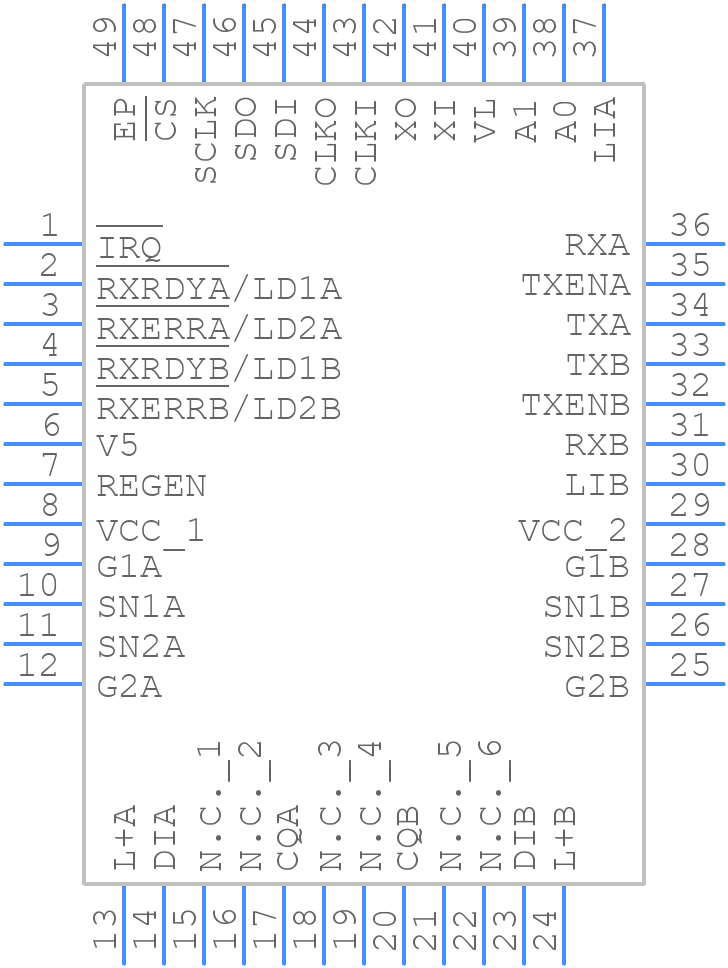

MAX14819ATM+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14819ATM+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4877+4
click to zoom
3D Models
MAX14819ATM+T - Analog Devices - 3D model - Quad Flat No-Lead - T4877+4
click to zoom

MAX14819ATM+T Details

  • Manufacturer Part Number:

    MAX14819ATM+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Package Description:

    TQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-06-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Rate:

    230 Mbps

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    IO-LINK TRANSCIEVERS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX14819ATM+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14819ATM+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • The MAX14819ATM+T is a highly configurable device, and the configuration depends on the specific application. For example, for motor control applications, you may need to configure the device for 3-phase motor control, while for power supply applications, you may need to configure it for voltage regulation. Refer to the application notes and evaluation boards provided by Analog Devices Inc for specific configuration guidelines.
  • The MAX14819ATM+T has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of industrial and automotive applications.
  • Common issues with the MAX14819ATM+T can often be troubleshooted by checking the PCB layout, ensuring proper power supply decoupling, and verifying the configuration and programming of the device. Additionally, Analog Devices Inc provides a range of tools and resources, including evaluation boards and simulation models, to help troubleshoot and optimize the device's performance.
  • The MAX14819ATM+T is designed to meet the requirements of various safety standards, including IEC 61508 and ISO 26262. However, the specific safety certification and compliance depend on the application and the system design. It's recommended to consult with Analog Devices Inc and relevant safety authorities to ensure compliance with the required safety standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14819ATM+T Overview

Use the download button to access the MAX14819ATM+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
