MAX14830ETM+ footprint, schematic symbol and 3D model by Analog Devices

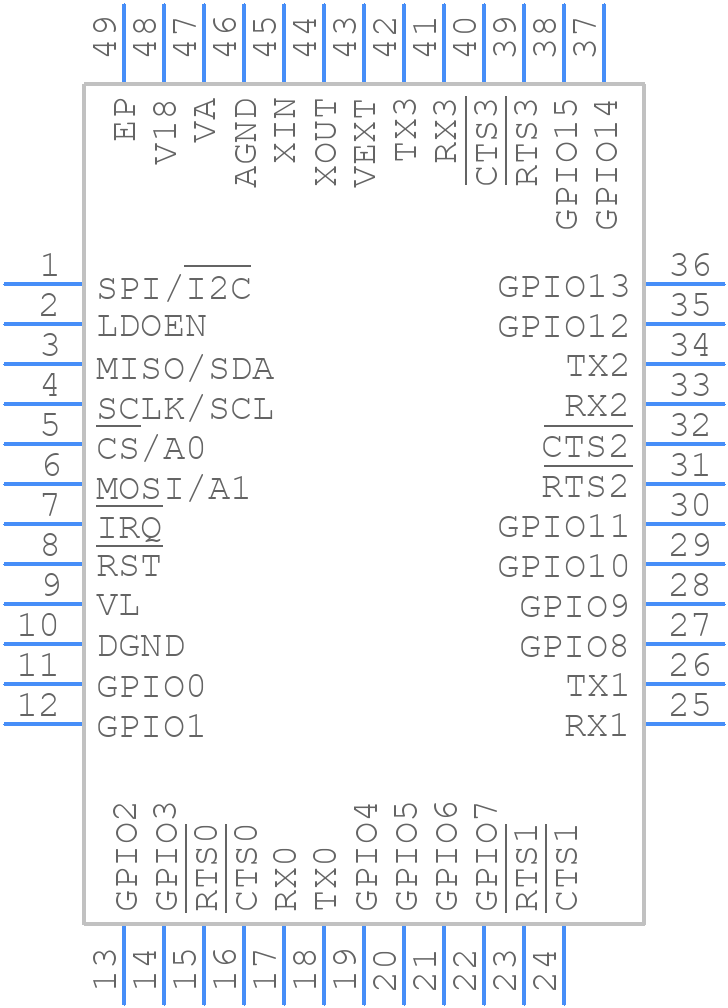

Symbol

click to zoom

PCB Footprints

MAX14830ETM+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T4877+3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX14830ETM+
Part Number MAX14830ETM+
Manufacturer Analog Devices
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - T4877+3
Released Date Jun 17, 2015
Last Modified Date Jan 16, 2025 4:45 AM UTC
Pinout / Pin List Click Here (Member Only)

MAX14830ETM+ Details

Manufacturer Part Number:
MAX14830ETM+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
48-LFCSP-7X7X0.75
Package Description:
TQFN-48
Pin Count:
48
Manufacturer Package Code:
48-LFCSP-7X7X0.75
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.31.00.30
Date Of Intro:
2010-10-22
Manufacturer:
Analog Devices Inc
YTEOL:
10
Boundary Scan:
NO
Clock Frequency-Max:
4 MHz
Communication Protocol:
ASYNC, BIT; SYNC, BYTE
JESD-30 Code:
S-XQCC-N48
JESD-609 Code:
e3
Length:
7 mm
Low Power Mode:
YES
Moisture Sensitivity Level:
1
Number of Serial I/Os:
4
Number of Terminals:
48
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC48,.27SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.35 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
uPs/uCs/Peripheral ICs Type:
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

MAX14830ETM+ Frequently Asked Questions (FAQs)

A good PCB layout for the MAX14830ETM+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. A 4-layer PCB with a dedicated power plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
To ensure proper power-up and configuration, follow the power-up sequence outlined in the datasheet. Apply the power supply to the device, then configure the device using the SPI interface. Make sure to set the correct clock frequency, data rate, and other parameters according to the application requirements. Also, ensure that the device is properly reset before configuring it.
The MAX14830ETM+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. Use a heat sink with a thermal resistance of less than 10°C/W, and ensure good airflow around the device. Additionally, avoid overheating the device during soldering and rework operations.
To troubleshoot issues with the MAX14830ETM+, start by reviewing the datasheet and application notes to ensure that the device is properly configured and powered. Use a logic analyzer or oscilloscope to verify the SPI interface signals and data transmission. Check for proper power supply and ground connections, and ensure that the device is not overheating. If issues persist, consult the Analog Devices support resources or contact their technical support team.
The MAX14830ETM+ has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during device handling and assembly. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment. Avoid touching the device pins or exposing them to static electricity, and use ESD-protected packaging and shipping materials.
