MAX14830ETM+T - Analog Devices

Description: UART Interface IC Quad Serial UART with 128-Word FIFOs

Download MAX14830ETM+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

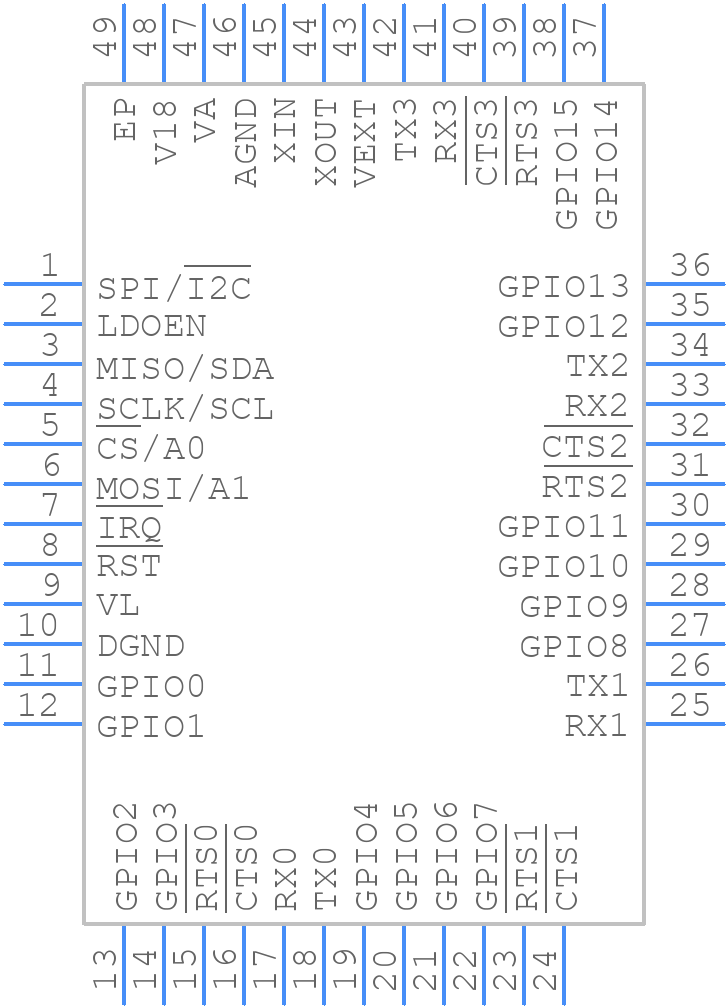

MAX14830ETM+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14830ETM+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 TQFN
click to zoom
3D Models
MAX14830ETM+T - Analog Devices - 3D model - Quad Flat No-Lead - 48 TQFN
click to zoom

MAX14830ETM+T Details

  • Manufacturer Part Number:

    MAX14830ETM+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Package Description:

    TQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2010-10-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Boundary Scan:

    NO

  • Bus Compatibility:

    I2C; IRDA; MICROWIRE; RS232; RS485; SPI

  • Clock Frequency-Max:

    4 MHz

  • Communication Protocol:

    ASYNC, BIT; SYNC, BYTE

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    1.95 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

MAX14830ETM+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX14830ETM+T can be found in the MAX14830 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for signal integrity and thermal management.
  • To optimize the MAX14830ETM+T for low power consumption, ensure that the device is operated at the lowest possible supply voltage (VCC) and that the output drivers are disabled when not in use. Additionally, consider using the device's low-power mode (LP mode) and adjusting the slew rate to minimize power consumption. Refer to the datasheet for specific guidelines on power management.
  • The maximum cable length supported by the MAX14830ETM+T depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 100 meters at data rates up to 100 Mbps. However, it's recommended to consult the datasheet and perform signal integrity simulations to determine the maximum cable length for a specific application.
  • To troubleshoot common issues with the MAX14830ETM+T, start by consulting the datasheet and application notes for guidance on signal integrity and device operation. Use oscilloscopes and logic analyzers to debug signal quality and timing issues. Additionally, Analog Devices provides a range of support resources, including FAQs, knowledge base articles, and technical support forums, to help engineers troubleshoot and resolve issues.
  • Yes, the MAX14830ETM+T is rated for operation over an industrial temperature range of -40°C to +85°C. However, it's essential to ensure that the device is properly derated for temperature and that the PCB design takes into account thermal management considerations to ensure reliable operation over the entire temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14830ETM+T Overview

Use the download button to access the MAX14830ETM+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Serial IO/Communication Controllers
