MAX14850AEE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX14850AEE+ - Digital Isolator, 6 Channel, 18 ns, 3 V, 5.5 V, QSOP, 16 Pins

Download MAX14850AEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

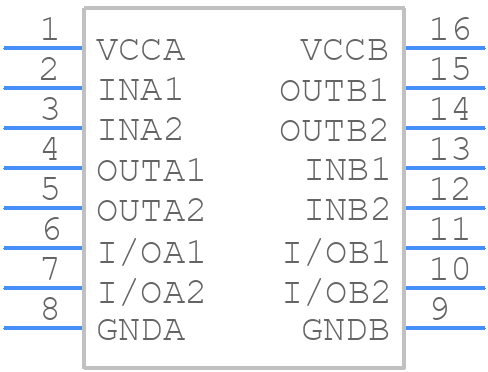

MAX14850AEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14850AEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP
click to zoom
3D Models
MAX14850AEE+ - Analog Devices - 3D model - Small Outline Packages - 16 QSOP
click to zoom

MAX14850AEE+ Details

  • Manufacturer Part Number:

    MAX14850AEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2012-03-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX14850AEE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14850AEE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable communication over the RS-485 bus, make sure to use a twisted-pair cable, keep the cable length within the recommended specifications, and use a common mode choke to reduce electromagnetic interference (EMI). Also, ensure that the transmitter and receiver are properly terminated and that the bus is not overloaded.
  • The maximum cable length supported by the MAX14850AEE+ depends on the data rate and the cable characteristics. As a general rule, the maximum cable length is 4000 feet (1219 meters) at a data rate of 100 kbps, and 1000 feet (305 meters) at a data rate of 1 Mbps. However, it's recommended to consult the datasheet and perform tests to determine the maximum cable length for a specific application.
  • To handle hot swapping or hot plugging of devices on the RS-485 bus, use a transceiver with a high impedance when the device is not transmitting, and use a bus biasing circuit to maintain the bus voltage when a device is disconnected. Additionally, consider using a fault-tolerant transceiver like the MAX14850AEE+ that can withstand bus faults and continue to operate even when a device is disconnected.
  • The recommended power-up sequence for the MAX14850AEE+ is to power up the VCC supply first, followed by the VIO supply. This ensures that the internal voltage regulators are properly initialized and that the device operates correctly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14850AEE+ Overview

Use the download button to access the MAX14850AEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs
