MAX14850AEE+T - Analog Devices

Description: Digital Isolators Six Channel 600vrms Digital Isolator

Download MAX14850AEE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

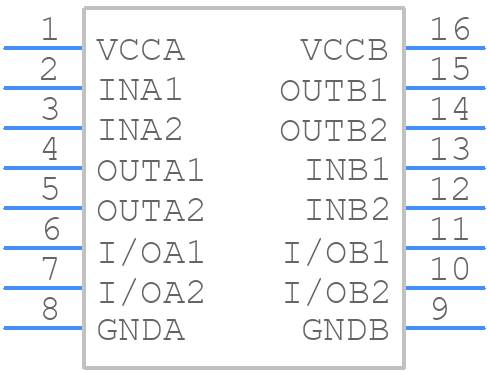

MAX14850AEE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14850AEE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP-
click to zoom
3D Models
MAX14850AEE+T - Analog Devices - 3D model - Small Outline Packages - 16 QSOP-
click to zoom

MAX14850AEE+T Details

  • Manufacturer Part Number:

    MAX14850AEE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2012-03-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX14850AEE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14850AEE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • The MAX14850AEE+T requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirements are not critical, but it's recommended to power up the device after the power supply has stabilized. Additionally, it's recommended to add decoupling capacitors close to the device to filter out noise and ensure stable operation.
  • The MAX14850AEE+T can achieve data rates of up to 100Mbps, but the actual data rate may be limited by the quality of the transmission line, the signal integrity, and the noise environment. Additionally, the device has a limited bandwidth of 50MHz, which may also impact the maximum achievable data rate.
  • The MAX14850AEE+T can be configured for half-duplex or full-duplex operation by setting the appropriate pins high or low. For half-duplex operation, the TXEN pin should be tied high, and for full-duplex operation, the TXEN pin should be tied low. Additionally, the device can be configured for automatic direction control by connecting the TXEN pin to the RXEN pin.
  • The MAX14850AEE+T has built-in ESD protection on all pins, which can withstand up to ±8kV of electrostatic discharge. Additionally, the device has latch-up protection, which prevents the device from entering a latch-up state in the event of an overvoltage or undervoltage condition.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14850AEE+T Overview

Use the download button to access the MAX14850AEE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
