MAX1486CUB+ - Analog Devices

Description: Half-/Full-Duplex RS-485 Transceiver

Download MAX1486CUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

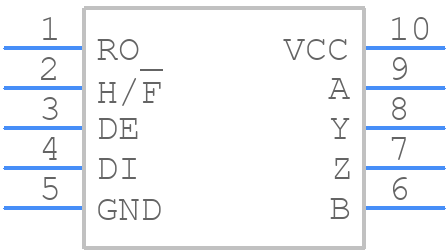

Symbol
MAX1486CUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1486CUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX1484EUB+
click to zoom
3D Models
MAX1486CUB+ - Analog Devices - 3D model - Small Outline Packages - MAX1484EUB+
click to zoom

MAX1486CUB+ Details

  • Manufacturer Part Number:

    MAX1486CUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    MICRO MAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-10-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    2 V

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    150 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    60 ns

  • Width:

    3 mm

MAX1486CUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX1486CUB+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the external components. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure the MAX1486CUB+ operates within the specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. Additionally, the device should be operated within the specified junction temperature (TJ) range of -40°C to +125°C.
  • The recommended input voltage range for the MAX1486CUB+ is 4.5V to 5.5V. Operating the device outside this range may affect its performance, reliability, and lifespan. It's essential to ensure the input voltage is within the specified range to guarantee the device operates correctly.
  • To troubleshoot issues with the MAX1486CUB+, start by verifying the power supply voltage, checking for proper connections, and ensuring the device is operated within the specified temperature range. Use an oscilloscope to check the input and output waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The MAX1486CUB+ is a commercial-grade device, and its reliability and performance may not be suitable for high-reliability or high-temperature applications. For such applications, it's recommended to use industrial-grade or automotive-grade devices that are specifically designed and qualified for high-reliability and high-temperature operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1486CUB+ Overview

Use the download button to access the MAX1486CUB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
