MAX14872ETC+T - Analog Devices

Description: Compact 4.5V to 36V Full-Bridge DC Motor Drivers

Download MAX14872ETC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

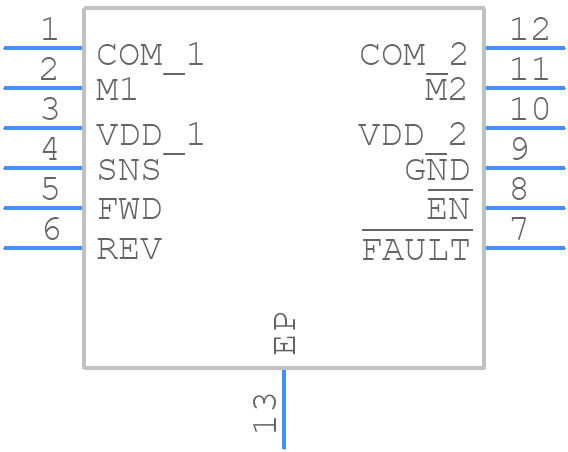

MAX14872ETC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14872ETC+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - MAX14872ETC+T
click to zoom
3D Models
MAX14872ETC+T - Analog Devices - 3D model - Small Outline No-lead - MAX14872ETC+T
click to zoom

MAX14872ETC+T Details

  • Manufacturer Part Number:

    MAX14872ETC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2014-09-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.11SQ

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX14872ETC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14872ETC+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which involves applying the power supply voltage to the device before applying the input signals. Additionally, the device should be configured in a specific order, such as setting the clock frequency and then enabling the transmitter.
  • Common pitfalls to avoid when designing with the MAX14872ETC+T include not following the recommended PCB layout, not using a sufficient decoupling capacitor, and not properly terminating the transmission lines. Additionally, not accounting for the device's power consumption and heat dissipation can also lead to design issues.
  • To troubleshoot issues with the MAX14872ETC+T, it's recommended to use a logic analyzer or oscilloscope to monitor the device's signals and identify the source of the problem. Additionally, checking the device's power supply voltage, clock frequency, and input signal integrity can help identify the root cause of the issue.
  • Yes, when designing with the MAX14872ETC+T, it's important to take into account EMI/EMC considerations such as using a shielded enclosure, keeping the device away from other noise-sensitive components, and using EMI filters or shielding on the transmission lines. Additionally, following good PCB design practices, such as using a solid ground plane and minimizing trace lengths, can also help reduce EMI/EMC issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14872ETC+T Overview

Use the download button to access the MAX14872ETC+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Motion Control Electronics

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
