MAX14878AWA+ - Analog Devices

Description: CAN Interface IC 5KV Isolated CAN

Download MAX14878AWA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

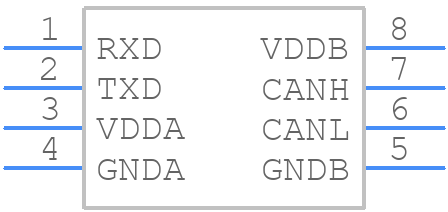

Symbol
MAX14878AWA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14878AWA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-2
click to zoom
3D Models
MAX14878AWA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO-2
click to zoom

MAX14878AWA+ Details

  • Manufacturer Part Number:

    MAX14878AWA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_W-300_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-10-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    0.83 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

MAX14878AWA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14878AWA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces between the device and the power supply.
  • To ensure proper powering of the MAX14878AWA+, make sure to provide a clean and stable power supply with a voltage range of 4.5V to 5.5V. Also, decouple the power supply lines with 0.1uF and 10uF capacitors, and use a low-ESR capacitor for the VCC pin.
  • The MAX14878AWA+ can support data rates up to 100Mbps, but the actual data rate achievable depends on the specific application, cable length, and noise environment. It's recommended to consult the datasheet and application notes for more information on data rate limitations.
  • The MAX14878AWA+ can be configured for half-duplex or full-duplex operation by setting the appropriate pins. For half-duplex operation, connect the TXEN pin to the TX output, and for full-duplex operation, connect the TXEN pin to VCC. Consult the datasheet for more information on pin configurations.
  • The recommended termination scheme for the MAX14878AWA+ is a 100Ω differential termination resistor at the receiver input, and a 50Ω series termination resistor at the transmitter output. This helps to minimize reflections and ensure reliable data transmission.
