MAX14878AWA+T - Analog Devices

Description: CAN Interface IC 5KV Isolated CAN

Download MAX14878AWA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

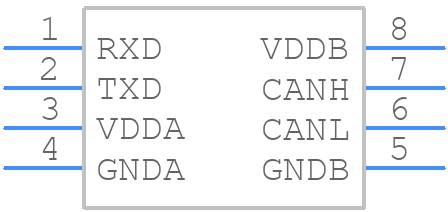

MAX14878AWA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14878AWA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W8MS+1
click to zoom
3D Models
MAX14878AWA+T - Analog Devices - 3D model - Small Outline Packages - W8MS+1
click to zoom

MAX14878AWA+T Details

  • Manufacturer Part Number:

    MAX14878AWA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_W-300_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-10-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    0.83 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

MAX14878AWA+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX14878AWA+T is a 4-layer board with a solid ground plane on the bottom layer, and a split power plane on the top layer. The device should be placed near the connector, and the signal traces should be kept short and away from noise sources.
  • The MAX14878AWA+T has a thermal pad that should be connected to a solid ground plane on the PCB. The thermal pad can be soldered to the PCB, and thermal vias can be used to dissipate heat to the other side of the board. A heat sink can also be attached to the top of the device for additional thermal management.
  • The recommended input voltage range for the MAX14878AWA+T is 3.0V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
  • The MAX14878AWA+T is a flexible device that can be configured using external resistors and capacitors. The device can be configured for different communication protocols such as RS-485, RS-422, and PROFIBUS by selecting the appropriate termination resistors and capacitors.
  • The MAX14878AWA+T is up to 50Mbps. However, the actual data rate may be limited by the transmission line characteristics, noise, and other system-level constraints.
