MAX14878WAWA+ - Analog Devices

Description: CAN Interface IC 2.75kV, 3.5kV and 5kV Isolated CAN Transceivers

Download MAX14878WAWA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

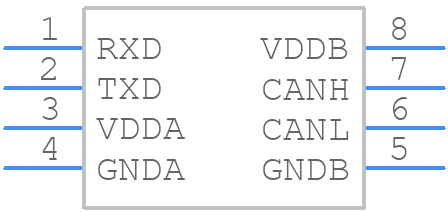

MAX14878WAWA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14878WAWA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W8MS+6_1
click to zoom
3D Models
MAX14878WAWA+ - Analog Devices - 3D model - Small Outline Packages - W8MS+6_1
click to zoom

MAX14878WAWA+ Details

  • Manufacturer Part Number:

    MAX14878WAWA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_W-300_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-10-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    0.83 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

MAX14878WAWA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14878WAWA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable communication over the RS-485 bus, make sure to use a twisted-pair cable, keep the cable length within the recommended specifications, and use a common mode choke to reduce electromagnetic interference (EMI). Additionally, ensure that the transmitter and receiver are properly terminated and that the bus is not overloaded.
  • The maximum cable length supported by the MAX14878WAWA+ depends on the data rate and the type of cable used. As a general rule, the maximum cable length is 4000 feet (1219 meters) at a data rate of 100 kbps, and 1000 feet (305 meters) at a data rate of 1 Mbps. However, it's recommended to consult the datasheet and perform tests to determine the maximum cable length for a specific application.
  • To handle hot swapping or insertion/removal of devices on the RS-485 bus, use a bus buffer or repeater to isolate the bus segments and prevent reflections and noise. Additionally, use a fault-tolerant transceiver like the MAX14878WAWA+ that can withstand bus faults and continue to operate even if a device is removed or inserted.
  • The recommended power-up sequence for the MAX14878WAWA+ is to power up the VCC supply first, followed by the VDD supply. This ensures that the internal voltage regulators are properly initialized and that the device operates correctly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14878WAWA+ Overview

Use the download button to access the MAX14878WAWA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
