- Part Number MAX14882AWE+
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 16 SO
- Released Date Nov 20, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX14882AWE+ Details
-
Manufacturer Part Number:
MAX14882AWE+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
16-SOIC_W-300_MIL
-
Package Description:
SOIC-16
-
Pin Count:
16
-
Manufacturer Package Code:
16-SOIC_W-300_MIL
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
HTS Code:
8542.39.00.01
-
Date Of Intro:
2018-05-29
-
Manufacturer:
Analog Devices Inc
MAX14882AWE+ Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX14882AWE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure reliable communication over the RS-485 bus, make sure to use a twisted-pair cable, keep the cable length within the recommended specifications, and use a common mode choke to reduce electromagnetic interference (EMI). Also, ensure that the transmitter and receiver are properly terminated and that the bus is not overloaded.
-
The maximum cable length supported by the MAX14882AWE+ depends on the data rate and the cable characteristics. As a general rule, the maximum cable length is 4000 feet (1219 meters) at a data rate of 100 kbps, and 1000 feet (305 meters) at a data rate of 1 Mbps. However, it's recommended to consult the datasheet and perform tests to determine the maximum cable length for a specific application.
-
To handle hot swapping or insertion/removal of devices on the RS-485 bus, use a bus buffer or a repeater to isolate the bus segments and prevent reflections. Additionally, use a fault-tolerant transceiver like the MAX14882AWE+, which can withstand bus faults and continue to operate even when a device is removed or inserted.
-
The recommended power-up sequence for the MAX14882AWE+ is to power up the VCC supply first, followed by the VIO supply. This ensures that the internal voltage regulators are properly initialized and that the device operates correctly.
Trust Checks
Community Provided
System Verified
Community Approved
MAX14882AWE+ Overview

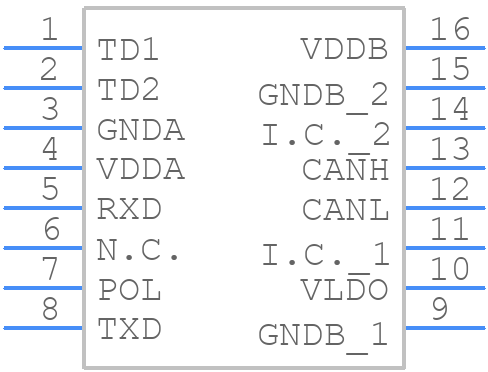

Use the download button to access the MAX14882AWE+ schematic symbol, PCB footprint, and 3D model.
