MAX14890EATJ+T - Analog Devices

Description: RS-422 Interface IC Incremental Encoder Interface for RS-422,HTL, and TTL with Digital Inputs

Download MAX14890EATJ+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

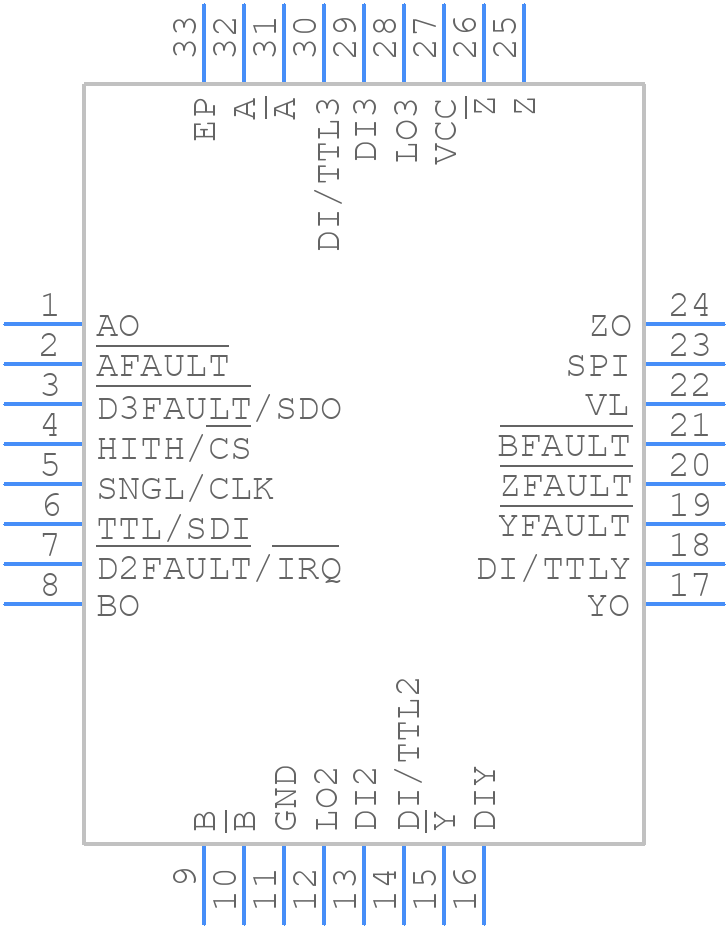

MAX14890EATJ+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14890EATJ+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T3255+6
click to zoom
3D Models
MAX14890EATJ+T - Analog Devices - 3D model - Quad Flat No-Lead - T3255+6
click to zoom

MAX14890EATJ+T Details

  • Manufacturer Part Number:

    MAX14890EATJ+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2015-06-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Number of Functions:

    6

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.003 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Receive Delay-Max:

    25 ns

  • Receiver Number of Bits:

    6

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm
